Product Description

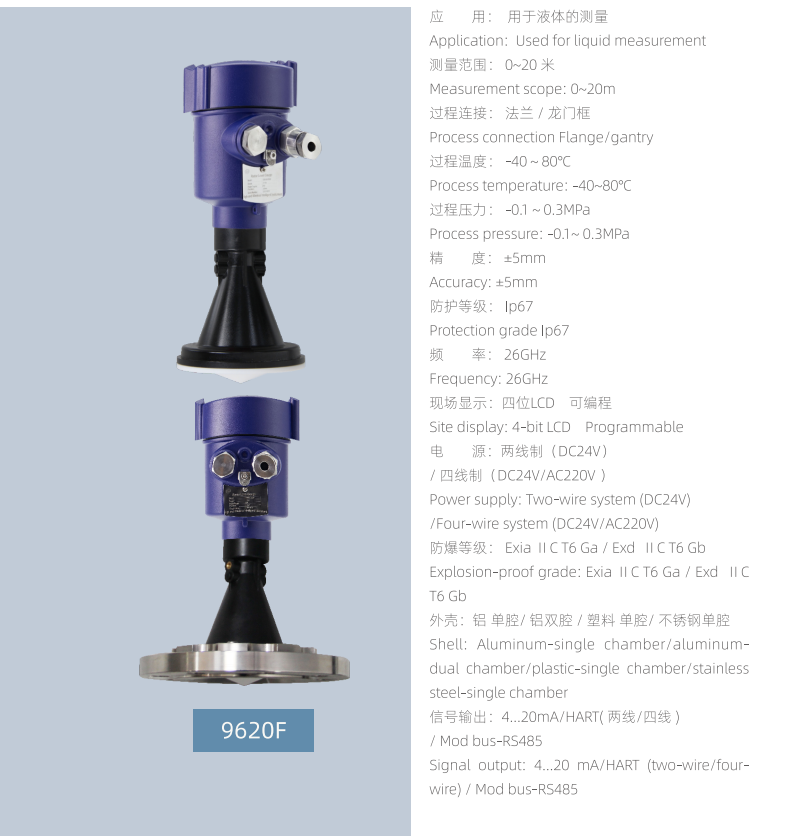

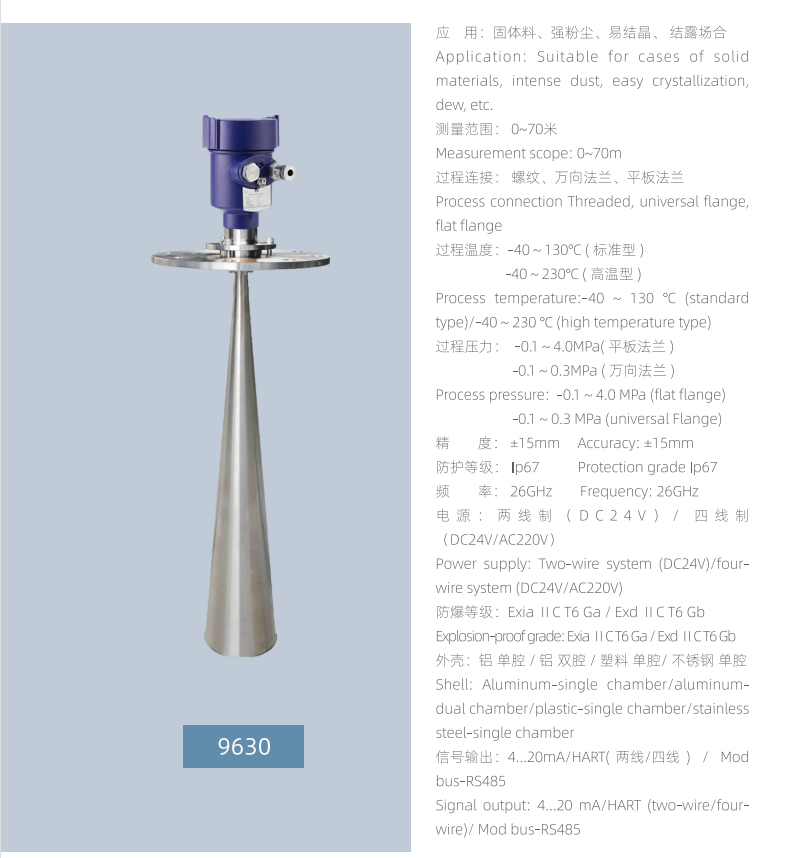

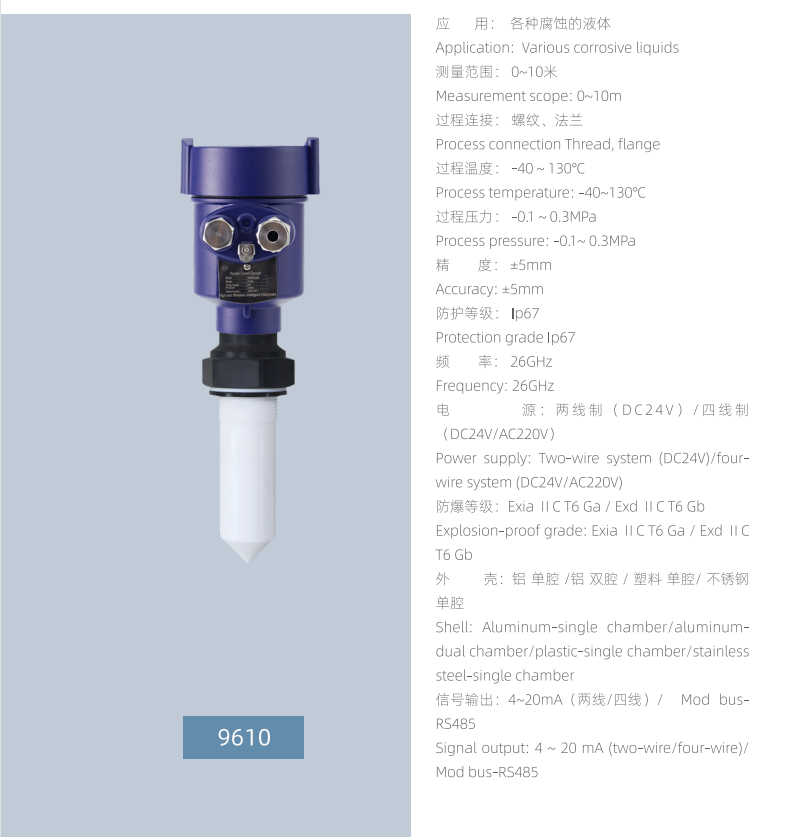

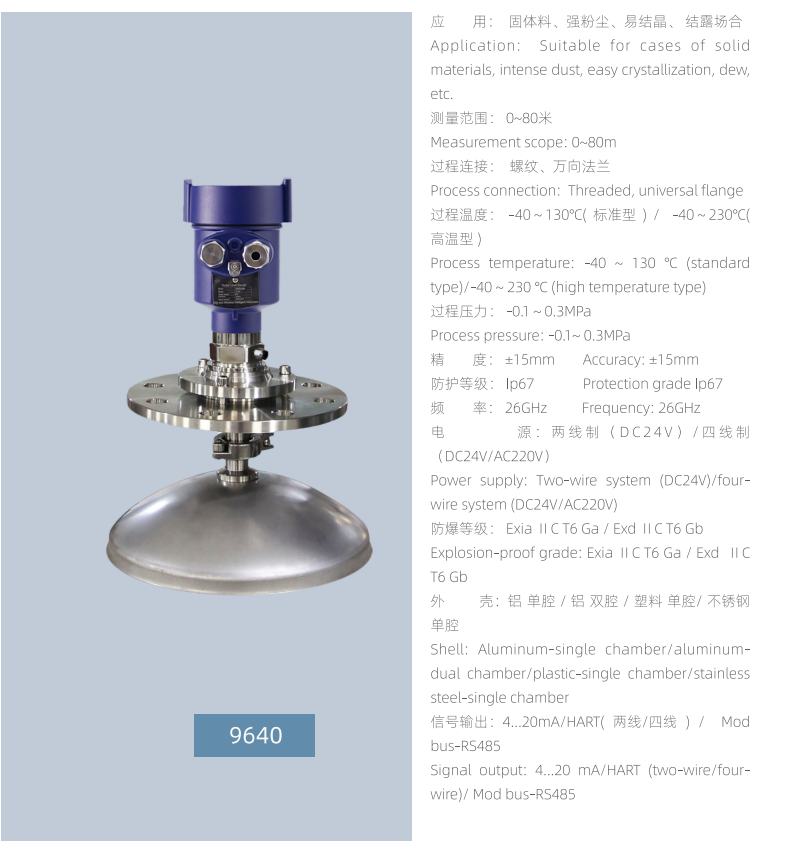

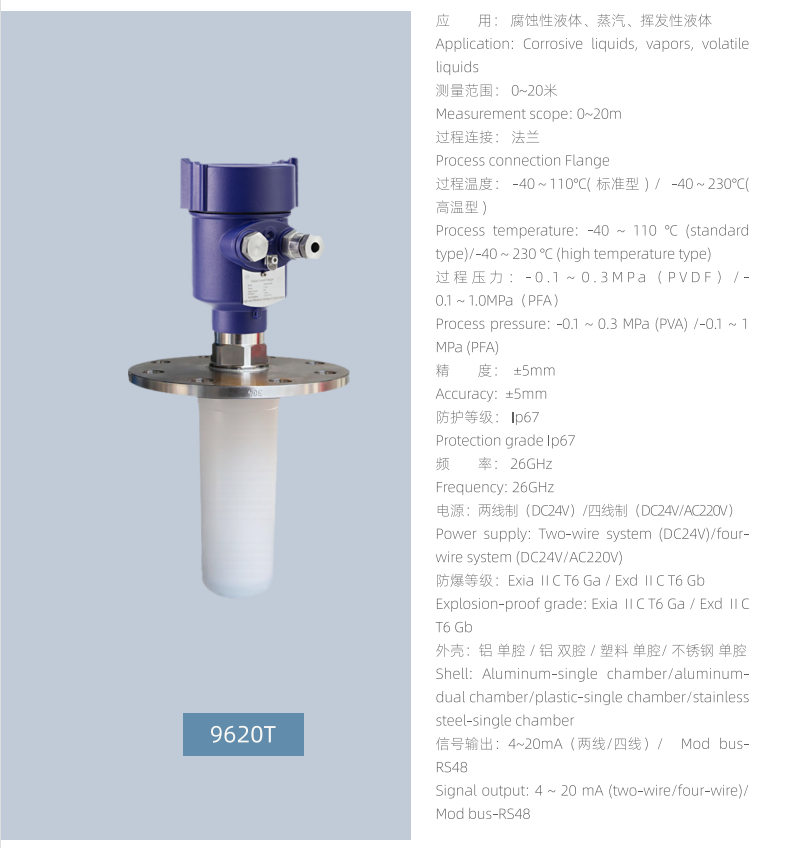

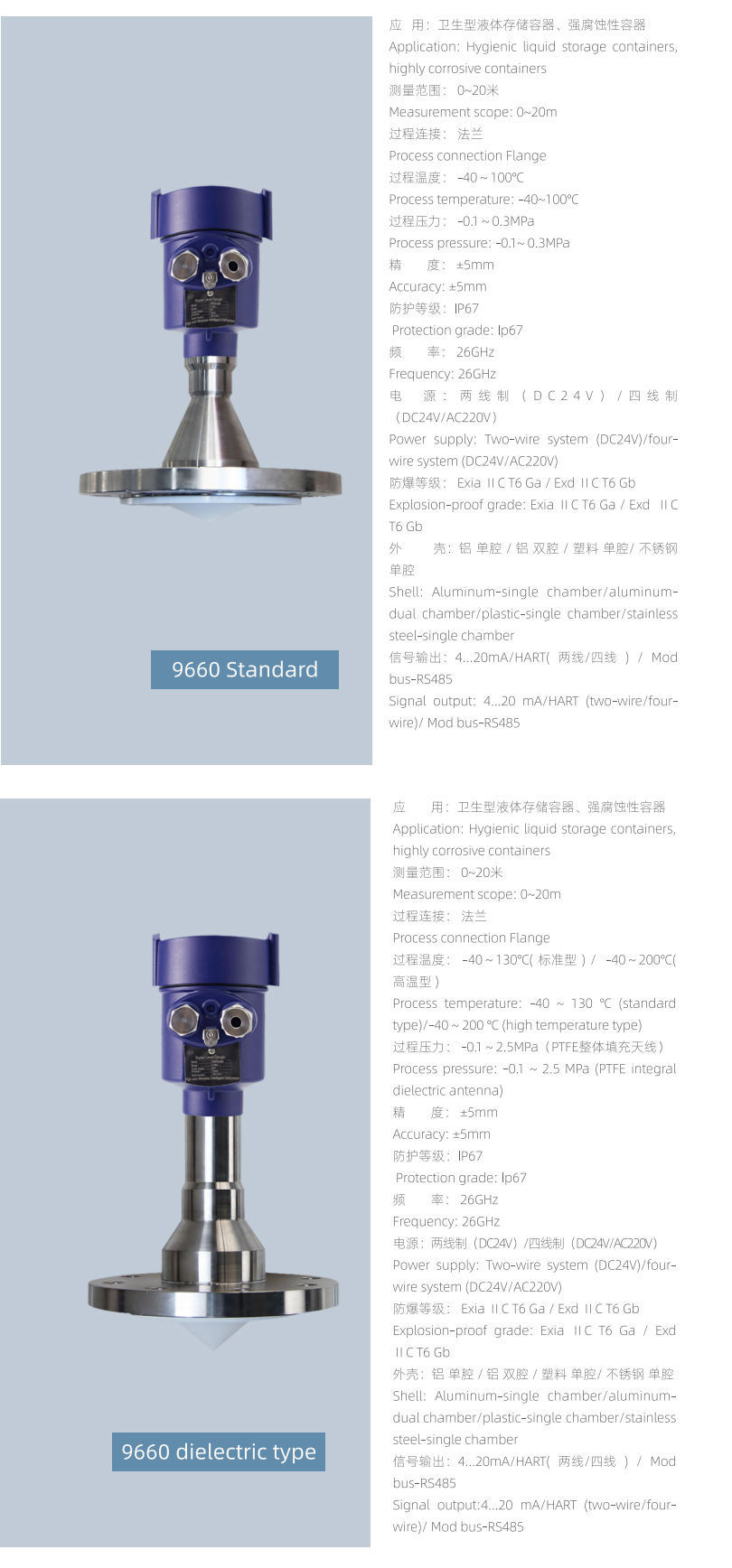

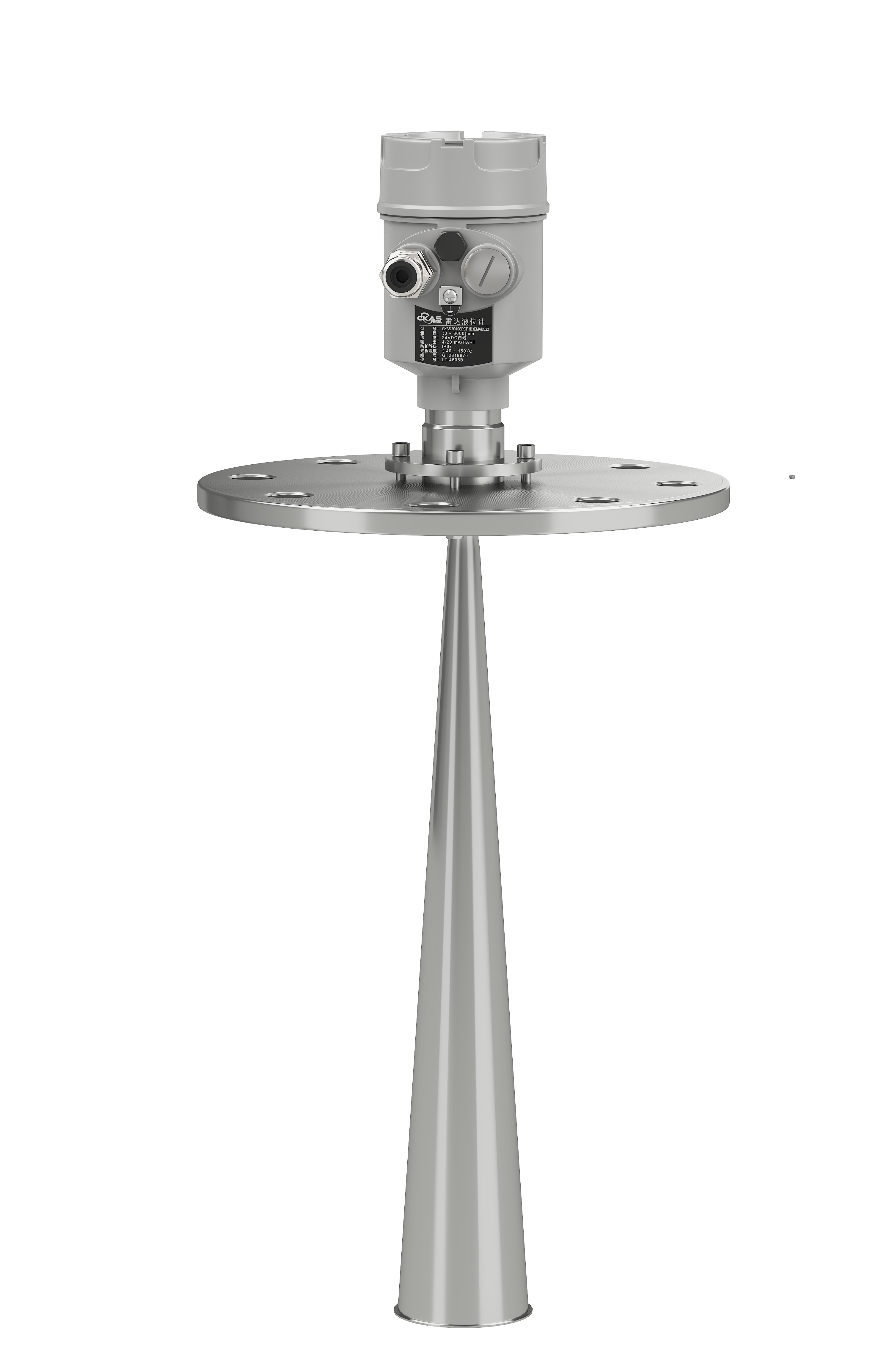

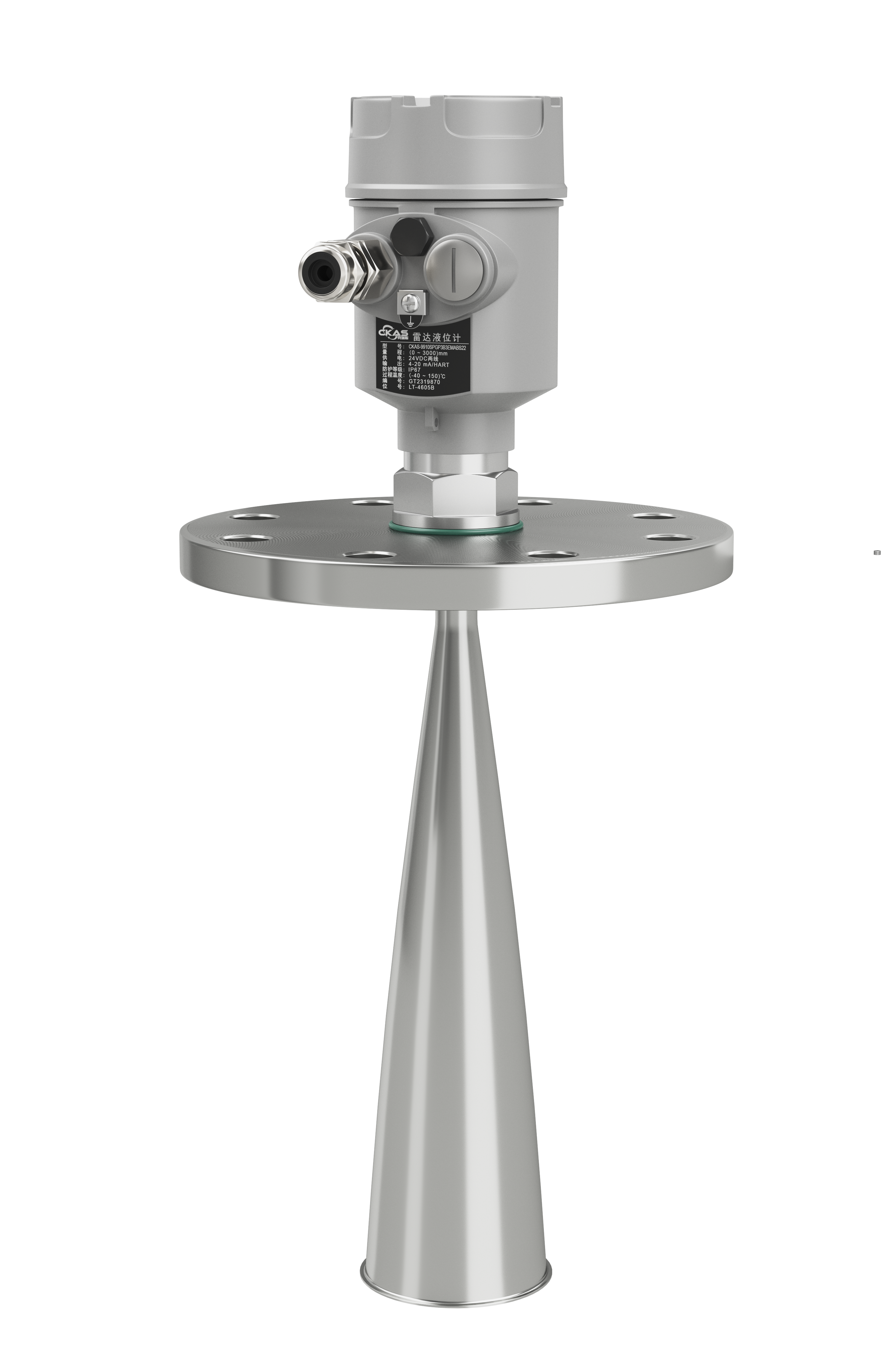

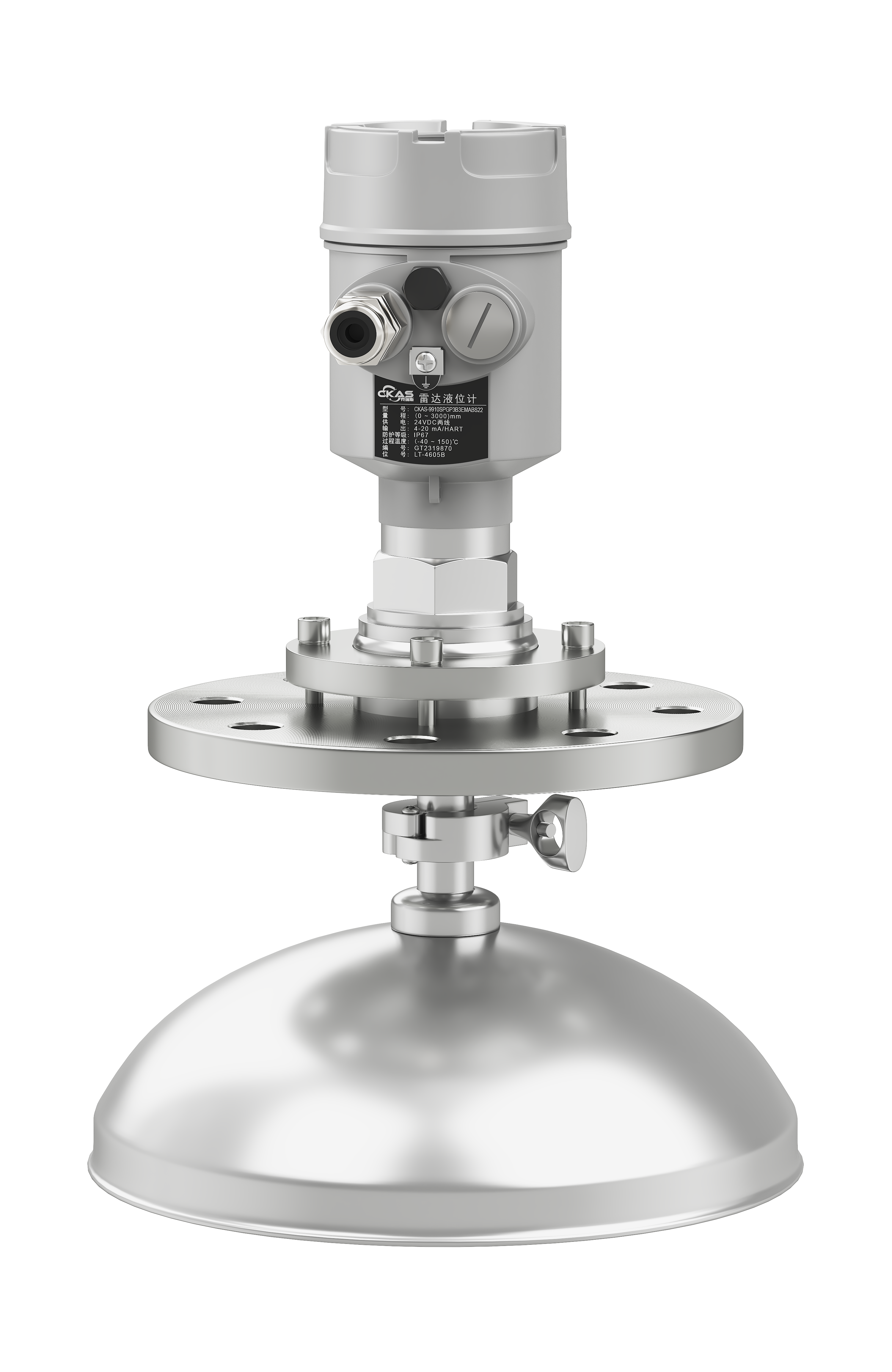

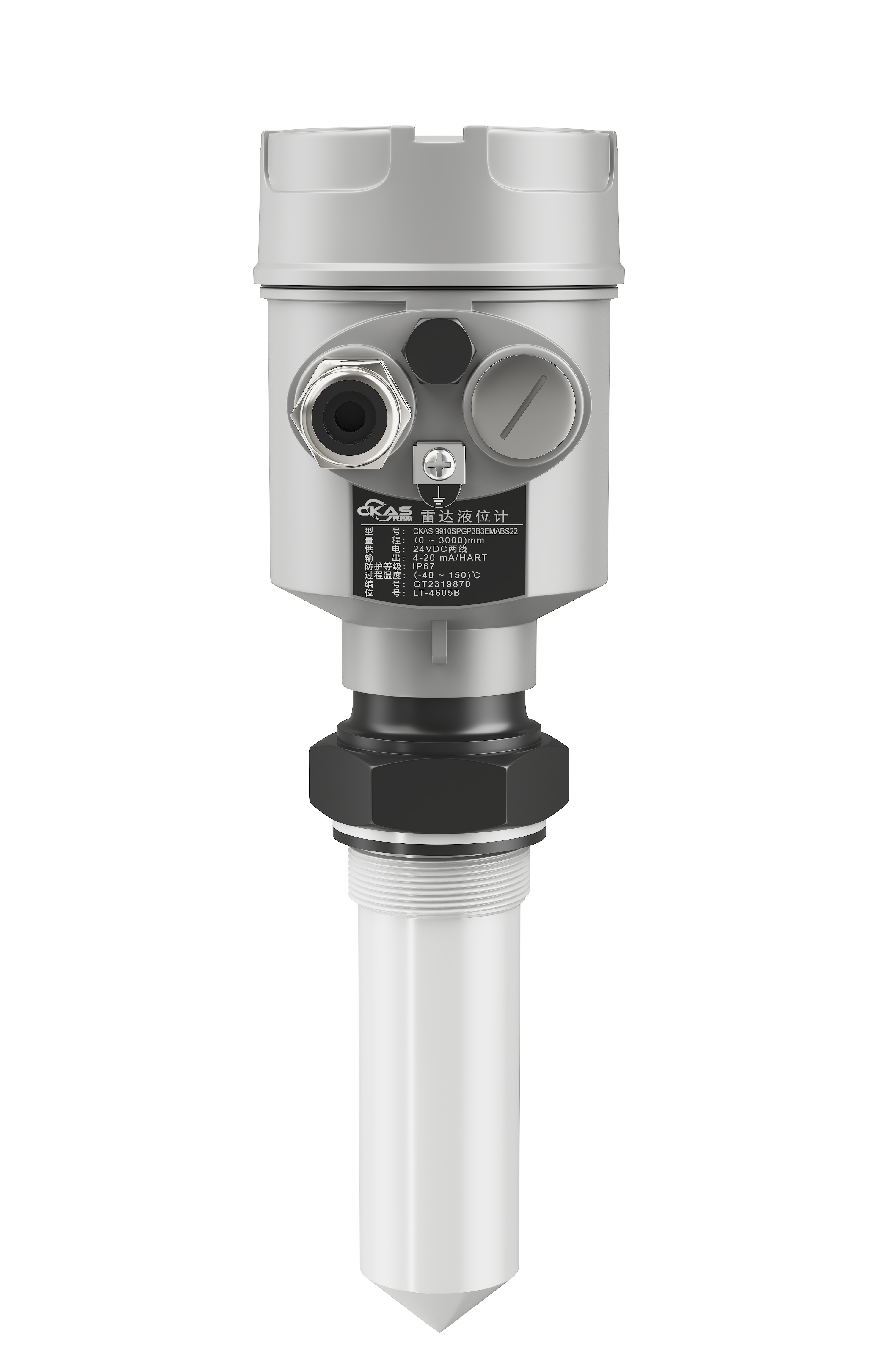

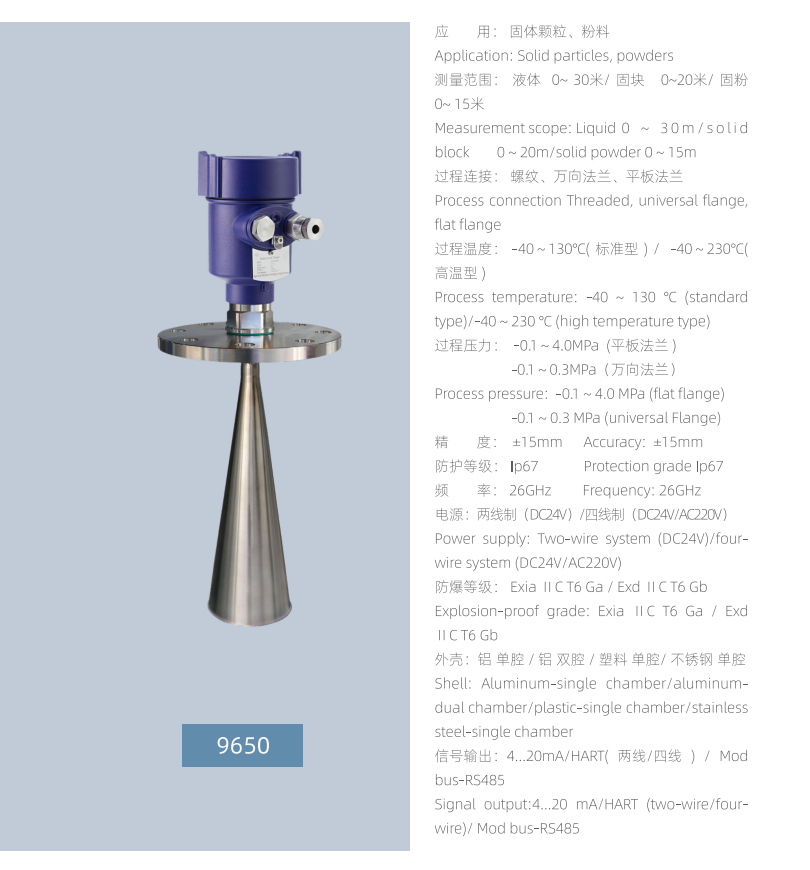

The 9600 series sensor is a 26G high-frequency radar level measuring instrument, and the maximum measurement distance can reach 80 meters.The antenna is further optimized, and the new fast microprocessor can perform signal analysis and processing at a higher rate, so that the instrument can be used for the measurement of various strong corrosive liquids.
principle
The radar level antenna emits narrow microwave pulses which are transmitted downwards through the antenna.After the microwave touches the surface of the measured medium, it is reflected back and received by the antenna system again, and the signal is transmitted to the electronic circuit part to be automatically converted into a level signal (because the microwave propagation speed is extremely fast, the electromagnetic wave reaches the target and returns to the receiver after reflection). The time taken is almost instantaneous).

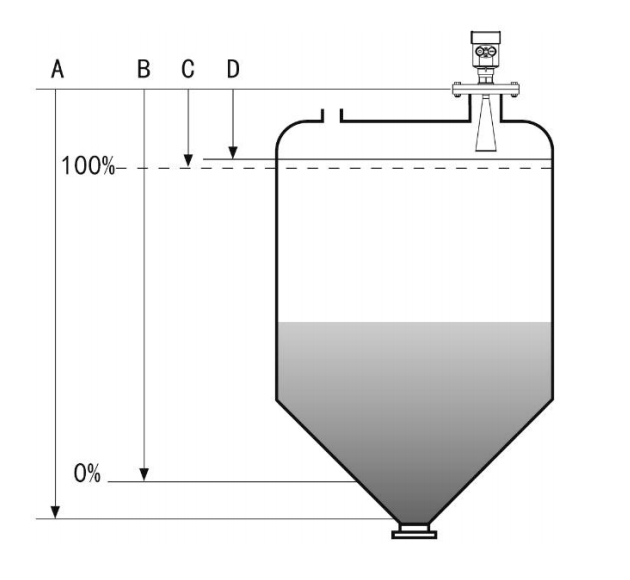

A range setting
B low adjustment
C high position adjustment
D Blind zone range
Features of high frequency radar level gauge
Non-contact radar, no wear, no pollution.
The antenna is small in size and easy to install.
Shorter wavelengths give better reflection from inclined solid surfaces.
The measurement blind area is smaller, and it will also achieve good results for small tank measurements.
Virtually unaffected by corrosion, slight foaming.
Virtually unaffected by changes in atmospheric water vapor, temperature and pressure.
Severe dust environment will not affect the electromagnetic wave work.
High signal-to-noise ratio for better performance even in fluctuating conditions.
The wave speed concentration effect is excellent, and with various types of antennas, it can meet 90% of the working conditions.
The reference surface for measurement is: the bottom surface of the thread or the sealing surface of the flange.
Note: When using the radar liquid level gauge, it must be ensured that the highest liquid level cannot enter the measurement blind zone.
