CKAS-8102PT series pressure transmitter


Availability:



Inquire

CKAS-8102PT series pressure transmitter adopts international advanced pressure sensor, equipped with low power consumption amplifier circuit and temperature compensation technology, which converts the pressure value of the measured medium into a standard current or voltage signal.The performance of the product is excellent and reliable. The structure is flexible and diverse, and it is widely used in petroleum and chemical industry.Process control and pressure measurement in metallurgy, electric power, light industry, textile, building materials, hydrogeology, food, medicine, environmental control and other industries.

Measuring medium:
Gas, liquid, oil and other media compatible with the material of the contact parts
Measuring range:
-0.1...0~0.001...100MPa
overload pressure:
1.5 times or 5 times the range
pressure type:
Gauge, absolute or sealed junction pressure
Accuracy:
Minimum ±0.05%FS, typical ±0.075%FS, maximum ±0.1%FS
long-term stability:
<0.1%FS/year
Power supply:
12.5-36 VDC
Operating temperature:
-30 ~ 80°C
output signal:
4~20mA (two wires)0~10/20mA (three wires)0/l~5/10V (three wires)
Load Resistance:
<(U-1 5 )/0.02Ω< (U-15)/0.02Ω>5k
Sensor housing:
Stainless steel IGrl8Ni9Ti, diaphragm: stainless steel 316L, electronic housing: aluminum alloy fluorine rubber 'O' ring or fully welded
degree of protection:
IP68

Product Description

Features

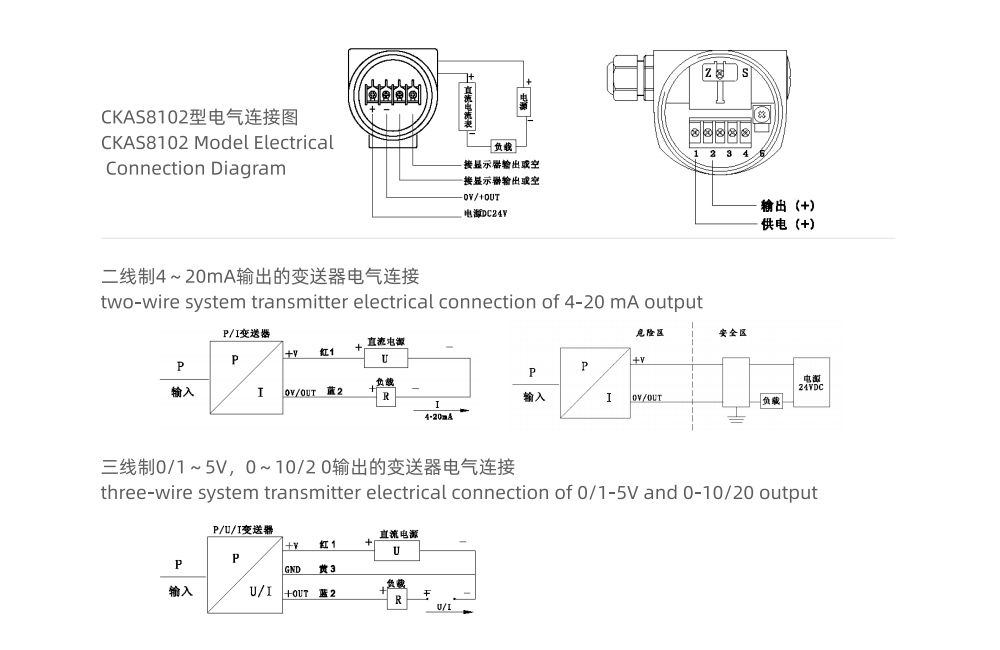

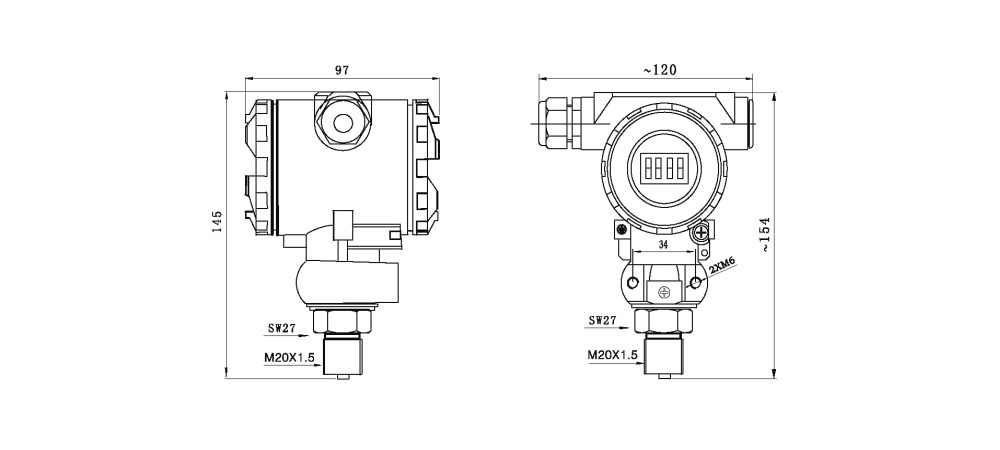

Outline structure and electrical connection

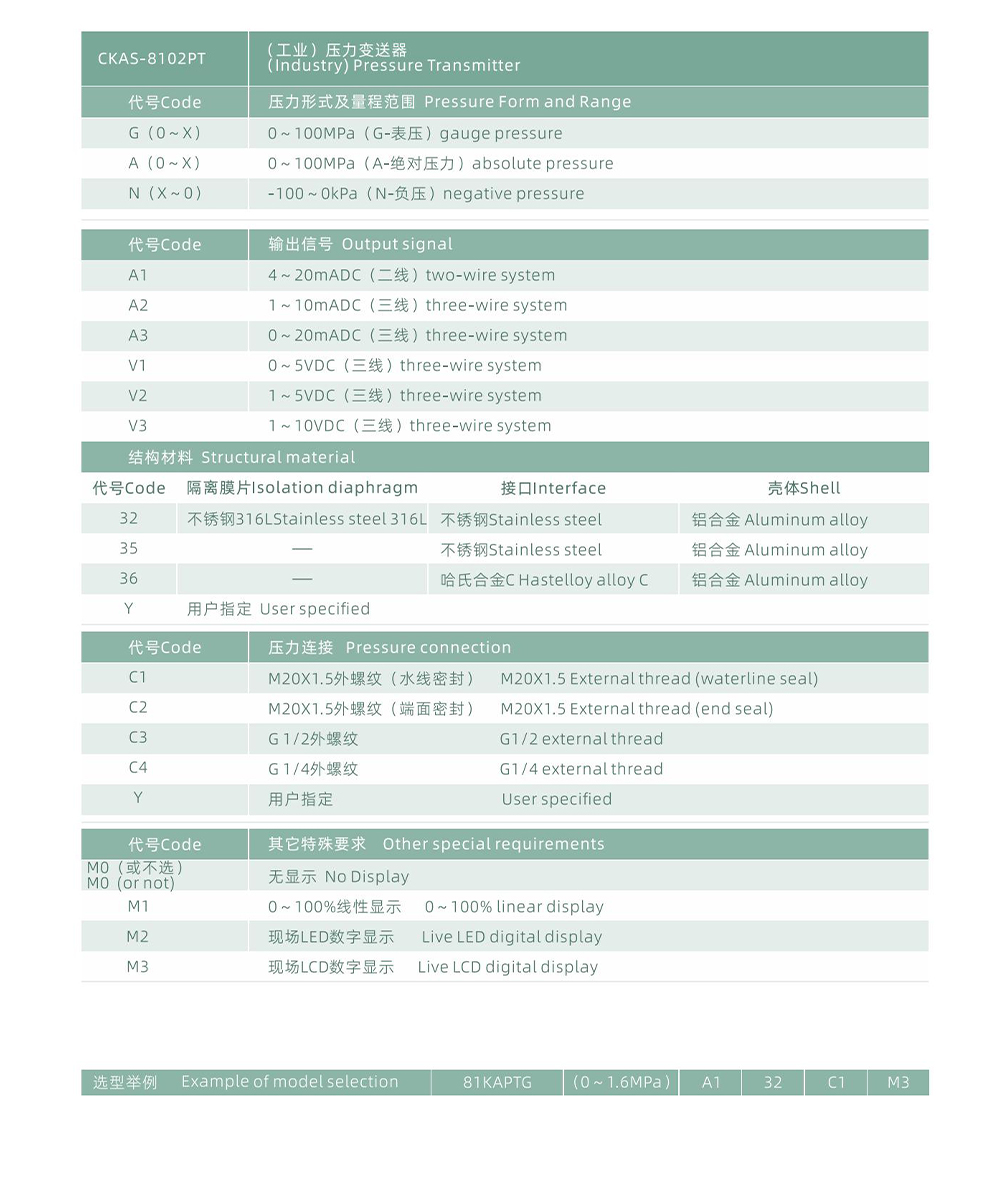

Selection Guide

Picture of pressure transmitter

Product Description

CKAS-8102PT series pressure transmitter adopts international advanced pressure sensor, equipped with low power consumption amplifier circuit and temperature compensation technology, which converts the pressure value of the measured medium into a standard current or voltage signal.The performance of the product is excellent and reliable. The structure is flexible and diverse, and it is widely used in petroleum and chemical industry.Process control and pressure measurement in metallurgy, electric power, light industry, textile, building materials, hydrogeology, food, medicine, environmental control and other industries.

The protection grade of the aluminum alloy electronic shell is IP65, which can be used in harsh environments or open-air places; a variety of signal outputs are optional, zero point and full scale can be adjusted on site, and can be connected with 0~100% linear indicator, LCD, LED The digital field displays the measured pressure value; it has overvoltage and anti-interference protection measures; the intrinsically safe explosion-proof products meet the requirements of Exibll Ct6.

Features

1. With reverse protection and current limiting protection circuit, the transmitter will not be damaged if the positive and negative poles are reversed during installation.

2. Solid structure, no moving parts.

3. High reliability and long service life.

4. Easy installation, simple structure, economical and durable.
