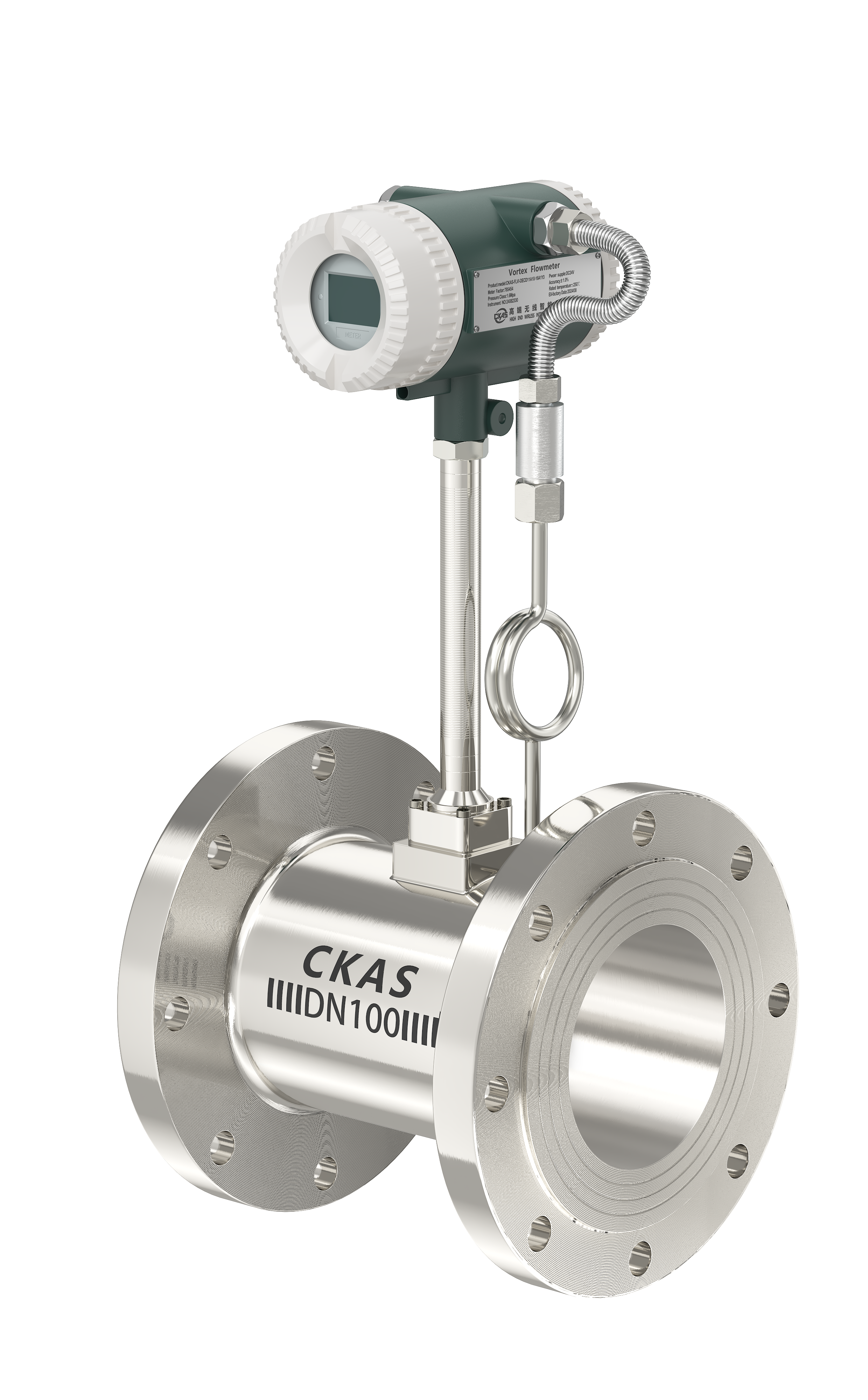

CKAS-FLVJ-S Intelligent Digital Vortex Flowmeter

Product Description

·Professional measurement of compressed air

·Integration of pressure, temperature and vortex street, simple structure, low failure rate and easy maintenance.

·Good linearity between output frequency and flow rate, no zero point drift problem.

The converter adopts adaptive spectrum analysis digital processing and perfect isolation system to ensure the detection of real signals in harsh field environments, thereby achieving low measurement lower limit, wide range ratio and high stability.

·Adaptive frequency and harmonic analysis technology improves the precision of vortex digital signal processing while ensuring low power consumption performance, high-performance signal processing technology improves the anti-interference ability of vortex.

·Have the function of industrial Internet of things, apply WiFi technology, online operation monitoring, online software upgrade.

features

· Measuring medium: compressed air

Stable performance in the piezoelectric element embedded probe

The detection element does not contact the medium, the pressure loss is small, and the service life is long

·Intelligent integrated design, permanent internal parameters

·Easy to operate, only need to set the pipe diameter parameters and measuring medium to complete the basic debugging

·Low flow measurement lower limit

·Wide flow measurement range

·Temperature and pressure integrated compensation

·Have the function of industrial Internet of things, apply WiFi technology, online operation monitoring, software upgrade

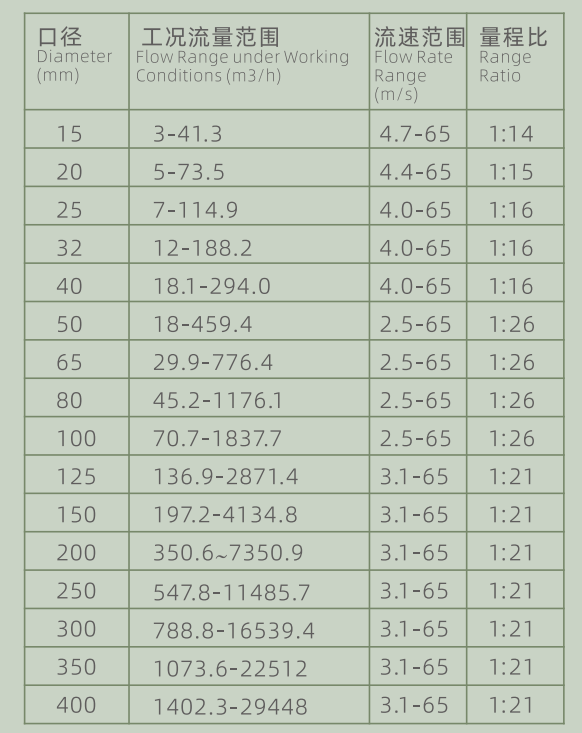

Flow range reference table of CKAS-FLVJ-S vortex flowmeter
