CKAS-8102G series high temperature pressure transmitter


Availability:



Inquire

The CKAS8102G series high-temperature pressure transmitter uses a high-temperature resistant pressure sensor as the signal measurement element. The pressure of the medium to be measured is transmitted to the sensor through the heat dissipation structure on the disc device. The high-precision signal processing circuit is located in the stainless steel shell to convert the output signal of the sensor into Standard output signal.

Measuring medium:
Gas, liquid, oil, etc. are compatible with the contact parts and have a certain viscosity and easy to block fluids
Measuring range:
-0.1...0~0.01...100MPa (the minimum range scaling is 1/5 of the basic range)
overload pressure:
1.5 times of the range (l00MPa range overload is 1.1 times
Accuracy:
0.075%FS(typical) 0.05%FS(maximum)
long-term stability:
+0.5%FS/year
Power supply:
12~36VDC (standard voltage 24VDC)
Operating temperature:
-40~150°C, -40~320°C (pressure>[00kPa)
output signal:
4~20mADC (two-wire system), 0~5V/1~5V (three-wire system)
media compatibility:
Diaphragm: stainless steel 316L,
Sensor housing:
cast aluminum alloy
O-ring:
fluororubber
degree of protection:
IP65

Product Description

Features

Outline structure and electrical connection

Selection Guide

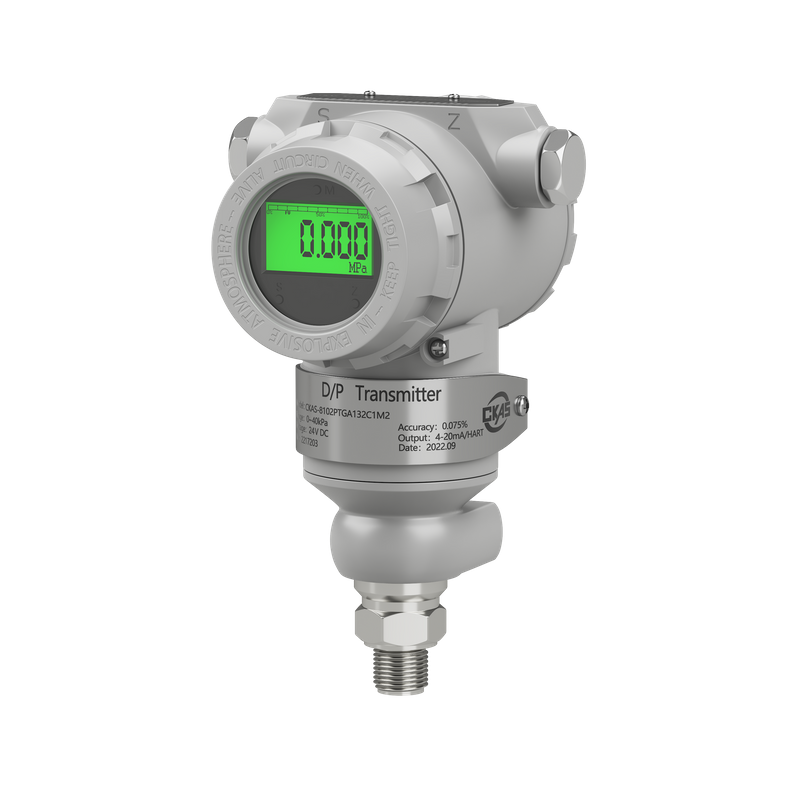

Picture of pressure transmitter

Product Description

The CKAS8102G series high-temperature pressure transmitter uses a high-temperature resistant pressure sensor as the signal measurement element. The pressure of the medium to be measured is transmitted to the sensor through the heat dissipation structure on the disc device. The high-precision signal processing circuit is located in the stainless steel shell to convert the output signal of the sensor into Standard output signal.

The entire product has passed strict testing and aging screening of components, semi-finished products and finished products, and its performance is stable and reliable.It is suitable for the fields of industrial petrochemical, metallurgical manufacturing, steam and heat energy exchange.At the same time, it can meet the requirements of pressure display, zero point and full scale transferability.

Anti-aging ·AIalgorithm·5Gtransmission

intelligent

Reliability PCB Authoritative Certification

Digitizing

Reliability PCB Authoritative Certification

miniaturization

Reliability PCB Authoritative Certification

productfeatures

One piece

The one-piece shell of the product has a long service life, excellent waterproof performance, comfortable touch feeling, and reasonable button layout.
One piece

The one-piece shell of the product has a long service life, excellent waterproof performance, comfortable touch feeling, and reasonable button layout.
first-class equipment

Using world-class production equipment, leading technology, advanced technology, stable and reliable products.

applicationindustry

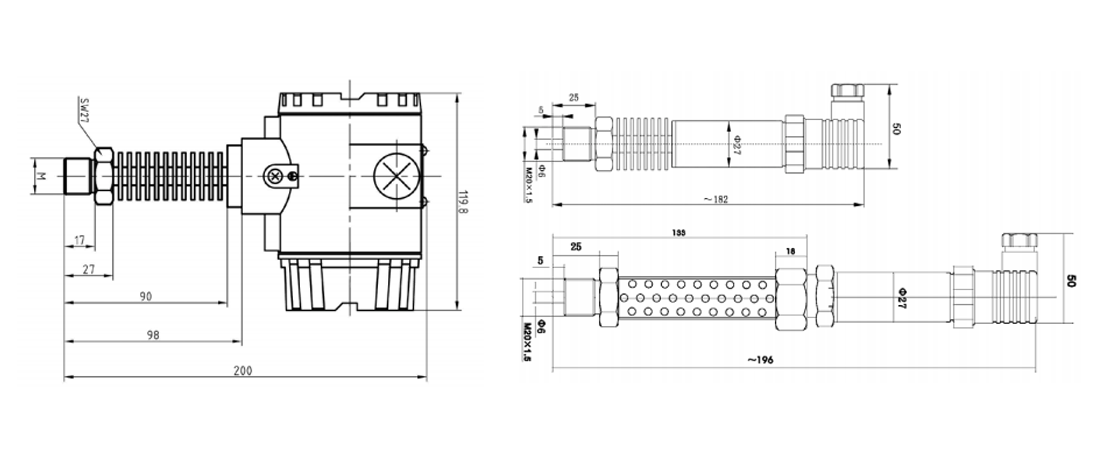

Dimensions

Dimensions

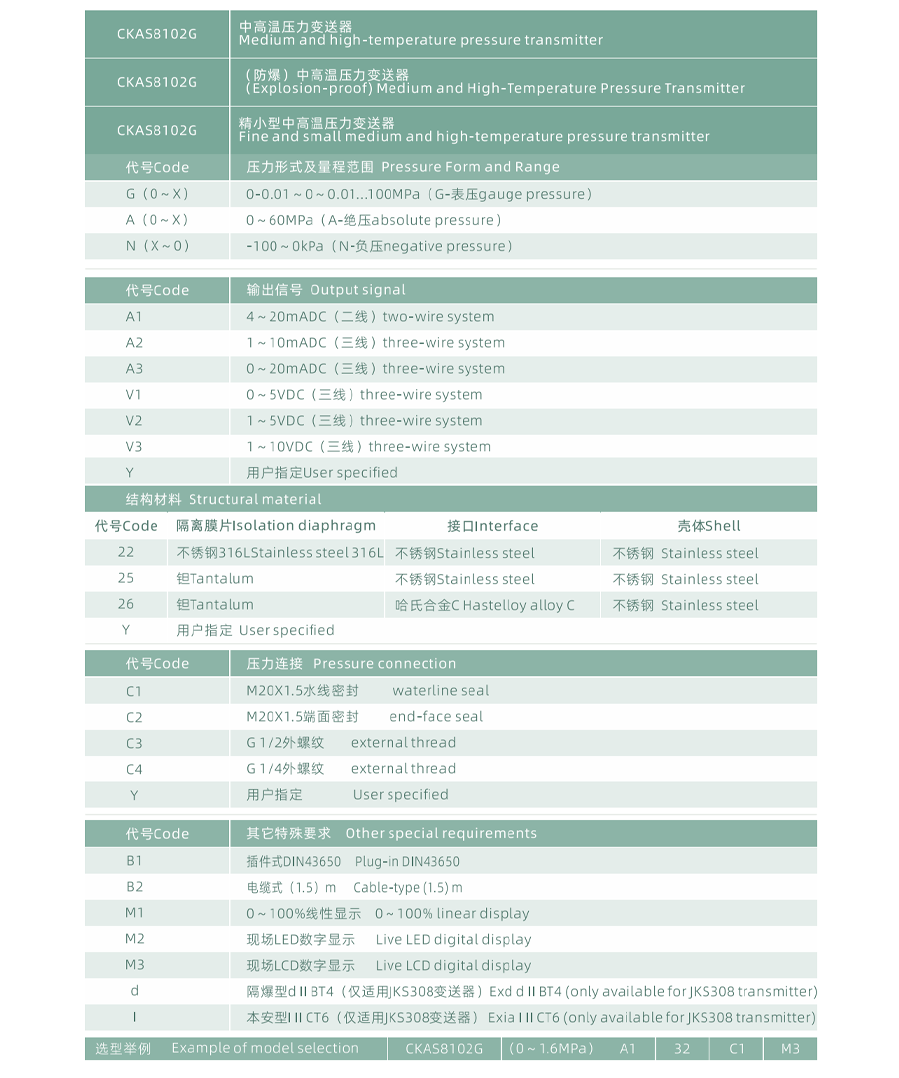

Selection Guide

Selection instructions

For the convenience of users, our company can provide special radiator accessories for pressure transmitters of various specifications;

In addition to the above product structures, our company can also provide high temperature pressure transmitters and pressure controllers in other structural forms according to user requirements;

For other special functional requirements, please contact our company for discussion.
