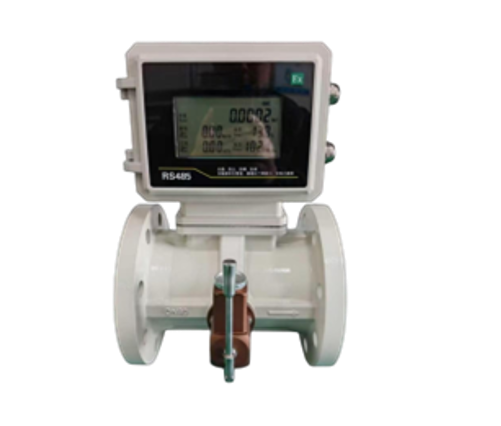

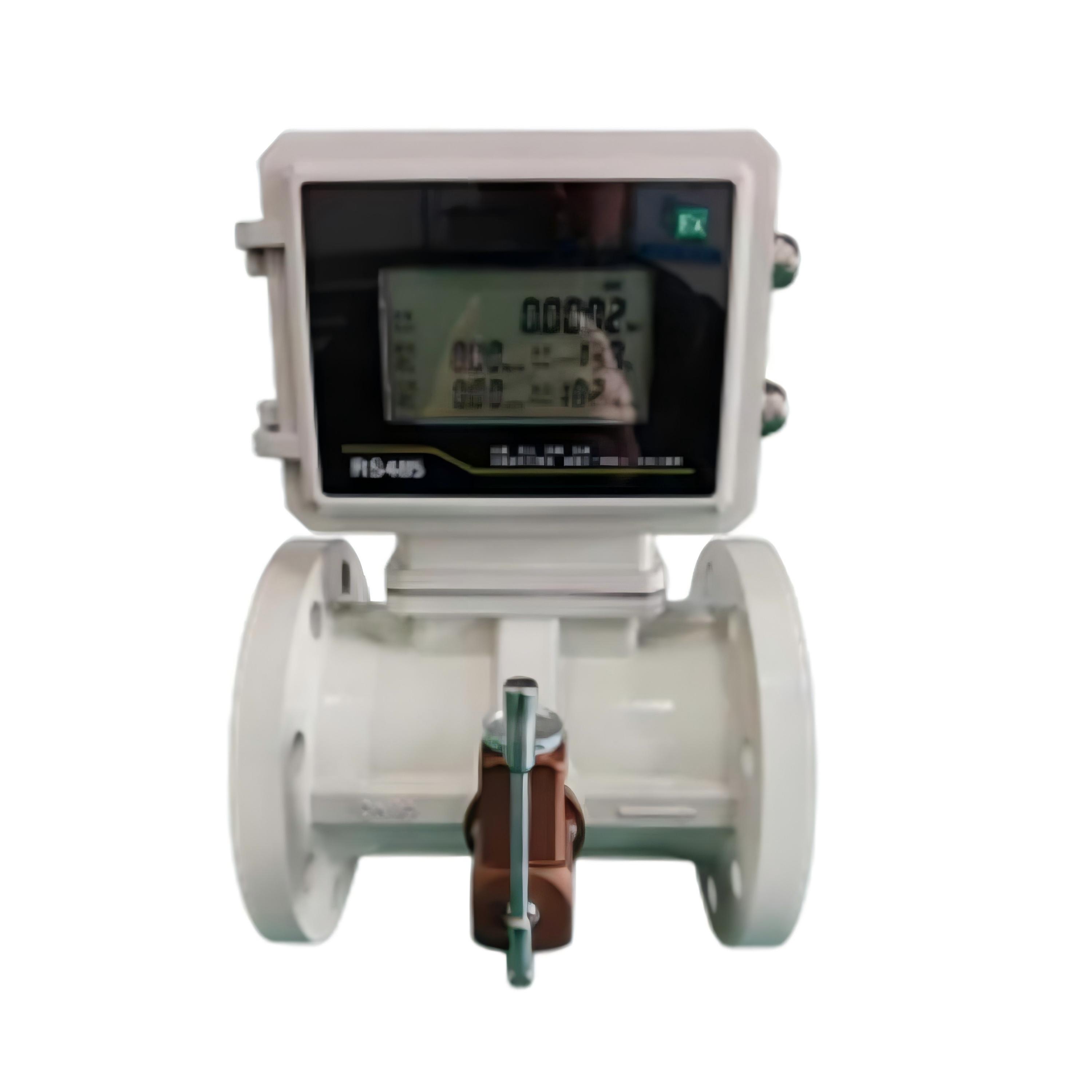

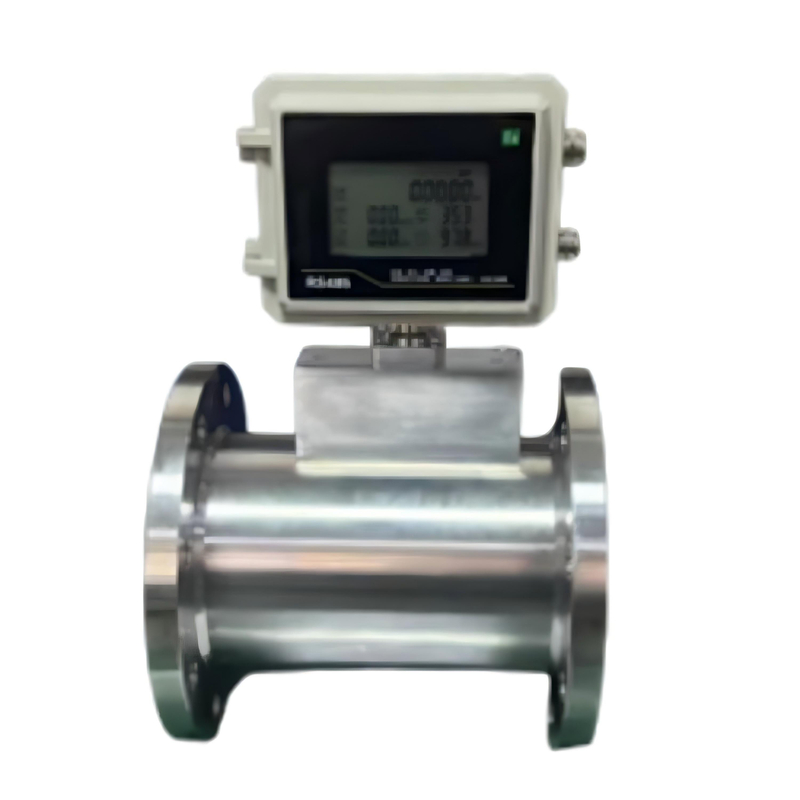

Product Description
CKAS-FLOW880 gas turbine flowmeter adopts advanced ultra-low power consumption single-chip microcomputer technology, intelligent circuit design, integrates flow probe, microprocessor, pressure and temperature sensors, adopts built-in combination, makes the structure more compact, and can be Directly measure the flow, pressure and temperature of the fluid, and automatically track compensation and compression factor correction in real time. It adopts liquid crystal dot matrix Chinese character display, with many display digits and intuitive and convenient reading. It can directly display the volume flow under working conditions and the volume flow under standard conditions. Parameters such as volume flow, total volume, and medium pressure and temperature can output frequency pulses, (4~20) mA analog signals and have RS485 interface.
Chinese and English bilingual options, widely used in gas metering in petroleum, chemical, electric power, metallurgy and other industries.

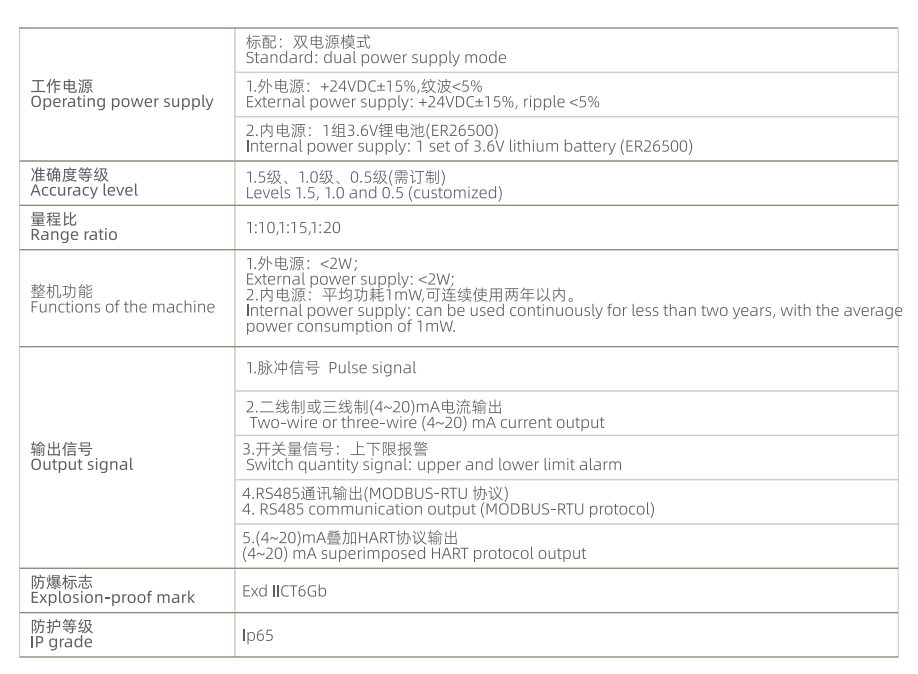

Technical Parameters
Features
1. It adopts liquid crystal dot matrix Chinese character display, with many display digits, and the reading is intuitive and convenient. It can directly display the volume flow rate under the working state, the total amount, and the medium pressure temperature and other parameters under the standard state;
2. There are two languages in Chinese and English for customers to choose
3. No mechanical moving parts, not easy to corrode, stable and reliable, long life, long-term operation without special maintenance:
4. Using 16-bit computer chips, high integration, small size, good performance, and strong functions of the whole machine;
5. The intelligent flow meter integrates the flow probe, microprocessor, pressure and temperature sensors into one, and adopts a built-in combination to make the structure more compact. It can directly measure the flow, pressure and temperature of the fluid, and automatically track the compensation and compression factor in real time fix;
6. The use of double detection technology can effectively improve the detection signal strength and suppress the interference caused by pipeline vibration; degree,
7. Adopt the domestic leading intelligent anti-seismic technology, effectively suppress the interference signal caused by vibration and pressure fluctuation
8. Using EEPROM technology, the parameter setting is convenient and can be permanently saved
9. The converter can output frequency pulse, (4~20) mA analog signal, and has RS485 interface, which can be directly connected to the microcomputer and the transmission distance can reach 1.2km;
10. A variety of alarm output methods, which can be selected by the user
11. The head of the flowmeter can be rotated 360 degrees in both directions, which is easy to install and use;
12. The power consumption of the whole machine is low, and it adopts dual power supply mode, which can be powered by internal battery or external power supply; a dry battery can work at full performance for at least 2 years.
