CKAS-8102Z RS485/HART Intelligent Pressure Transmitter


Availability:



Inquire

CKAS-8102Z RS485/HART intelligent pressure transmitter is an intelligent pressure measuring instrument with high precision and high stability.The measuring element adopts high-performance sensor, combined with single-chip computer technology and digital conversion technology to carry out precise digital temperature compensation and nonlinear correction, integrated structure design and standardized 4~20mA or field bus RS485 signal output, which can meet the increasing industrial scene The need for precise pressure measurement and control

Measuring medium:
Gases, liquids, oils, etc. are compatible with the media in contact with them and have a certain viscosity and are prone to plugging
Measuring range:
-0.1...0~0.01...100MPa (the minimum range scaling is 1/5 of the basic range)
overload pressure:
15 times the range (up to 110MPa)
Accuracy:
+0.05%FS (minimum) 0.075%FS (typical) 0.1%FS (maximum)
long-term stability:
+0.25%FS/year
Power supply:
12~36VDC (standard voltage 24VDC)
Operating temperature:
-40~80°C, explosion-proof type -10~60°C
output signal:
4~20mADC, RS485 digital interface/HART protocol optional)
media compatibility:
Shell: stainless steel: IGrl8Ni9Ti
degree of protection:
IP65

Product Description

Features

Outline structure and electrical connection

Auxiliary software and application examples

Selection Guide

Picture of pressure transmitter

Product Description

CKAS-8102Z RS485/HART intelligent pressure transmitter is an intelligent pressure measuring instrument with high precision and high stability. Linearity correction, integrated structural design and standardized 4~20mA or field bus RS485 signal output can meet the increasing needs of precision pressure measurement and control in industrial sites.

The product can work in the two-wire system, with automatic zero adjustment and temperature automatic compensation functions, and strong anti-interference ability. It is an upgraded product of the analog two-wire 4~20mAD C transmitter. RS485 can realize the transmitter through the provided host computer software. Passive adjustment of zero point and full range, range scaling and parameter setting. The digital interface can be flexibly networked (up to 99) for applications.For the HART protocol type, the transmitter can be configured on site through a handheld operator or a configuration system. The operation and maintenance are simple and convenient.

Anti-aging ·AIalgorithm·5Gtransmission

intelligent

Reliability PCB Authoritative Certification

Digitizing

Reliability PCB Authoritative Certification

miniaturization

Reliability PCB Authoritative Certification

productfeatures

One piece

The one-piece shell of the product has a long service life, excellent waterproof performance, comfortable touch feeling, and reasonable button layout.
One piece

The one-piece shell of the product has a long service life, excellent waterproof performance, comfortable touch feeling, and reasonable button layout.
first-class equipment

Using world-class production equipment, leading technology, advanced technology, stable and reliable products.

applicationindustry

Dimensions

Dimensions

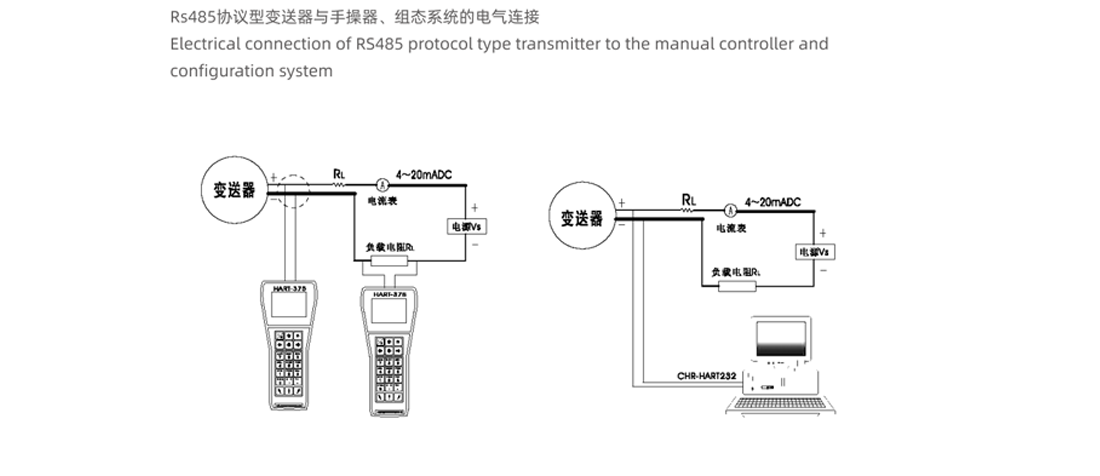

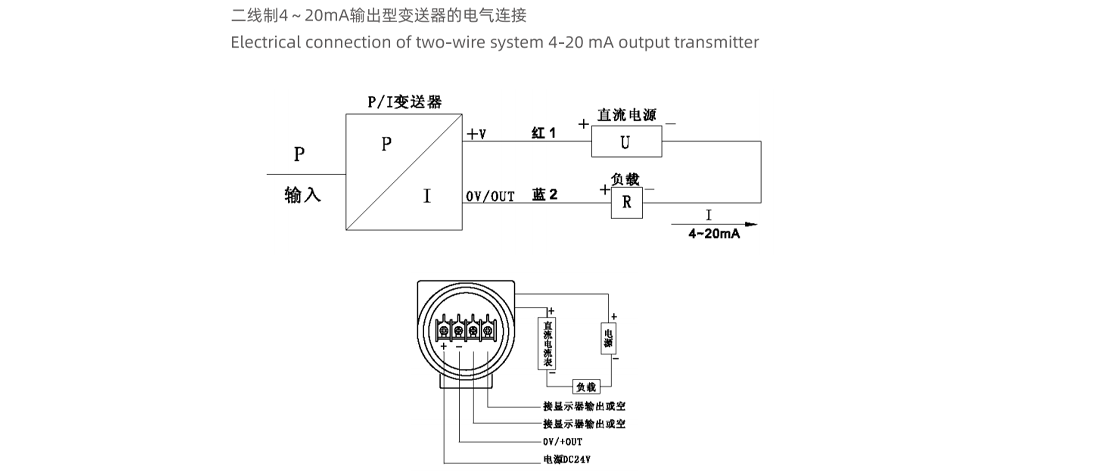

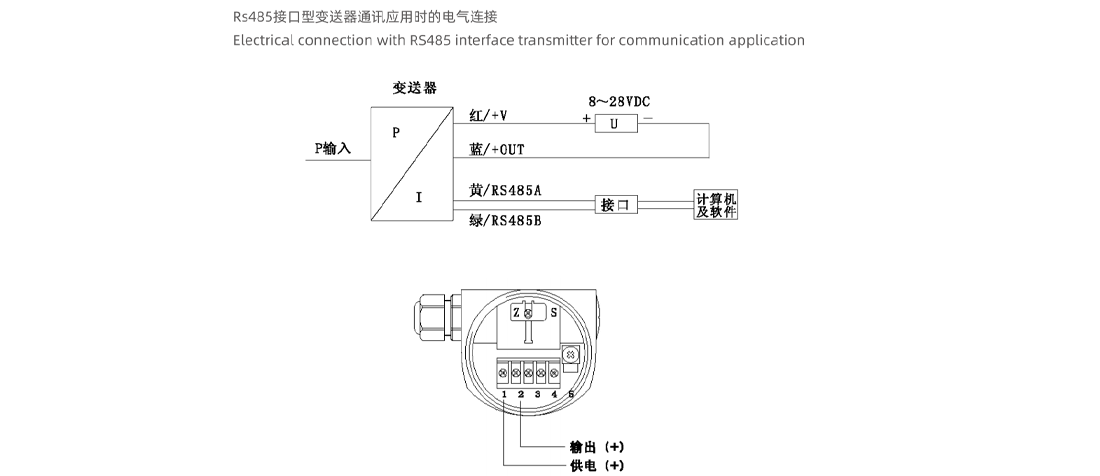

Electrical connections

Electrical connections

auxiliary software

RS485 interface transmitter, our company provides special RS485 program control software.Through the RS485/232 conversion module, the internal basic information of the product (liquid level range, temperature compensation range, etc.) can be read from the RS485 interface transmitter, the actual liquid level value can be displayed, the new zero point can be set, and the analog output and instrument address can be set by program control. .

For HART protocol interface products, our company provides special HART program control software, which can be used to debug and calibrate the transmitter through the HART375/475 handheld terminal.

Auxiliary software drivers can be downloaded from our company website or obtained by contacting the customer service center for direct use.Users of application software with special needs can develop by themselves according to their needs or contact our company's customer service for cooperative development.

Application examples
