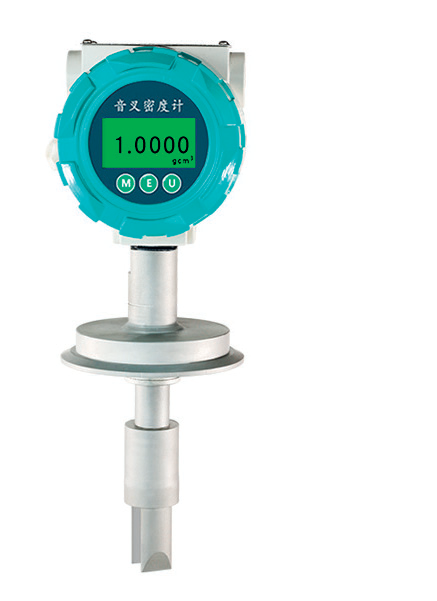

Tuning Fork Density Meter

Product Description

CKAS-TFDM800 series on-line density (concentration) sensor is an instrument for continuous on-line measurement of liquid density, mainly used for industrial process automation control.According to the change of medium density, corresponding 4~20mA analog signal is generated, and at the same time, it can be converted to output digital signal for remote calibration and monitoring

CKAS-TFDM800 series online density (concentration) sensor can be widely used in industrial sites such as on-site pipelines, open or closed storage tanks, etc. It can continuously and real-time measure the liquid density of pipelines or tanks online.Available: ExdIICT6/ExialICT4.

Features

1. Suitable for flowing or static liquids.

2. Suitable for pipeline and tank density measurement

3. Adopt integrated structure, no moving parts.

4. Standard industrial and sanitary process connections

5. The converter can be equipped with GPRS wireless remote transmission function

6. The instrument has a built-in temperature sensor to provide accurate temperature compensation

7. Online remote calibration, digital local display.

8. Factory multi-point linear correction, higher precision

9. On-site recalibration: No standard reference source, no experimental calibration, no process interruption The converter is compatible with three installation methods: wall-mounted, embedded, and desktop

10. The converter adopts touch screen display, the interface is more friendly
