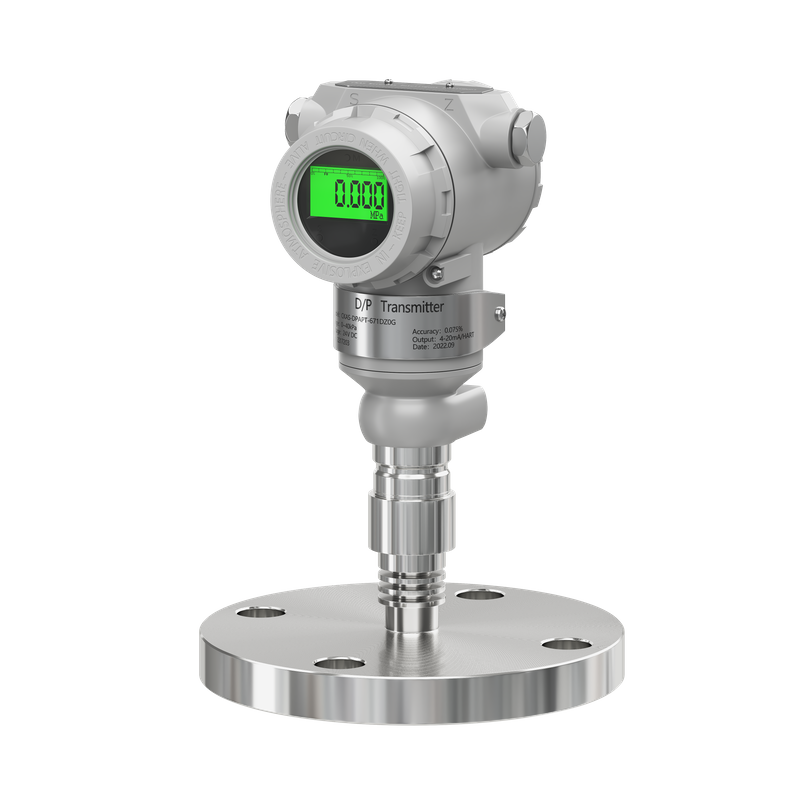

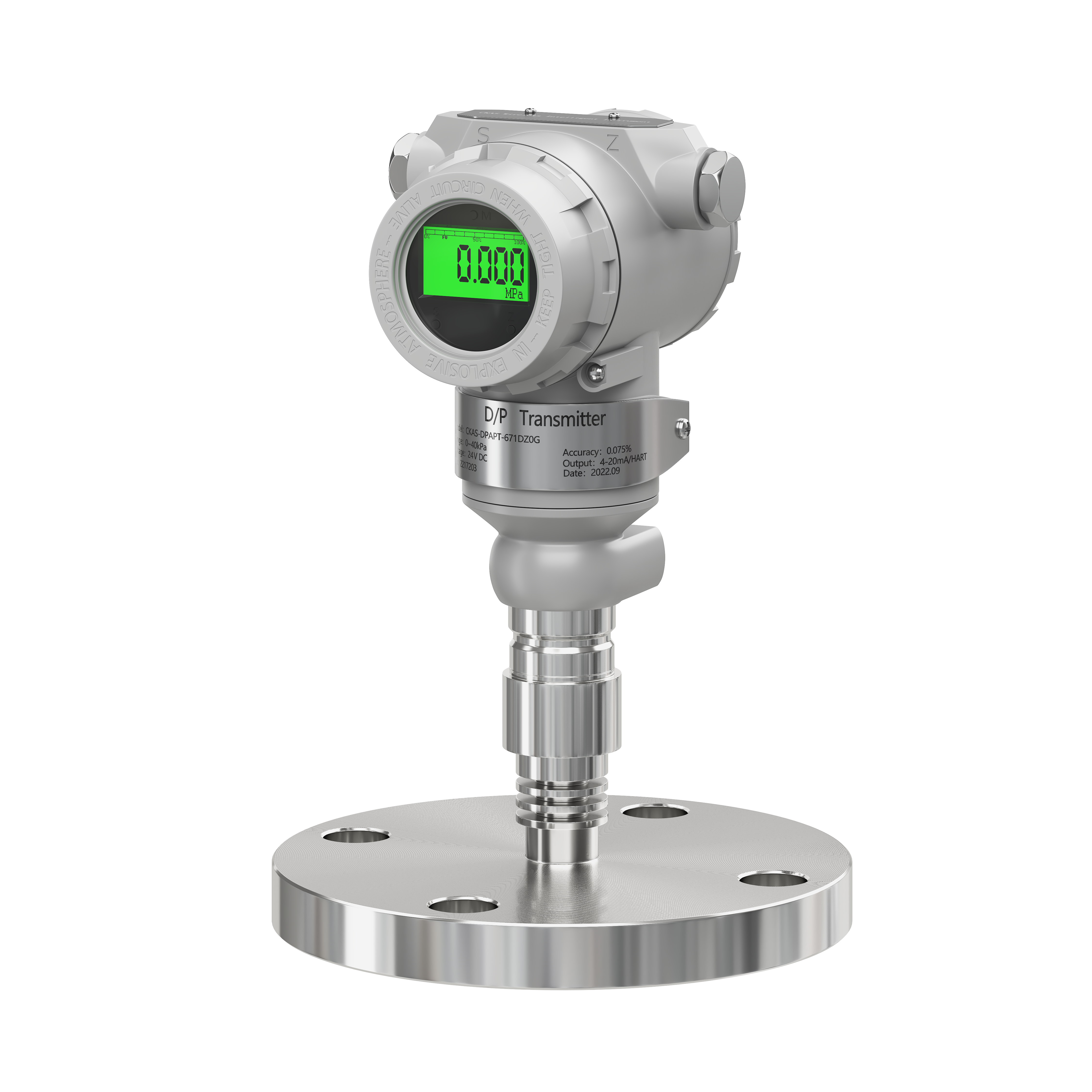

CKAS-8102PTEx Flameproof Pressure Transmitter


Availability:



Inquire

CKAS-8102PTEX pressure transmitter adopts high-performance, high-stability diffused silicon pressure core or ceramic piezoresistive core as the pressure measurement element. The sensor signal is converted into a standard signal output through special signal processing, after long-term aging and stability screening. , The performance of the product is stable and reliable, and it can be used in the scene with relatively harsh environment. At the same time, it can realize the requirements of on-site pressure display, zero point and full range transfer.

Measuring medium:
Gas, liquid, oil and other media compatible with the material of the contact parts
Measuring range:
-0.1...0~0.001...100MPa
overload pressure:
1.5 times the range or 110Mpa
pressure type:
Gauge, absolute or sealed reference pressure
Accuracy:
Typical ±0.1%FS, maximum ±0.5%FS (including non-linearity, hysteresis and repeatability)
long-term stability:
Typical ±0.1%FS/year, maximum ±0.2%FS/year
Power supply:
15-30 VDC
Operating temperature:
-30 ~ 80°C
output signal:
4~20mA (two wires)0~10/20mA (three wires)0/1~5/10V (three wires)
media compatibility:
Shell: stainless steel: IGrl8Ni9Ti
Diaphragm:
Stainless steel 316L
O-ring:
Viton or nitrile rubber
Explosion-proof grade:
Exiall Ct4
degree of protection:
IP65
pressure connection:
G1/2, M12, M201.5, clamp, flange or special design

Product Description

Features

Outline structure and electrical connection

Selection Guide

Picture of pressure transmitter

Product Description

CKAS-8102PTEx pressure transmitter adopts high-performance, high-stability diffused silicon pressure core or ceramic piezoresistive core as the pressure measurement element. The sensor signal is converted into a standard signal output through special signal processing, after long-term aging and stability screening. , The performance of the product is stable and reliable, and it can be used in the scene with relatively harsh environment. At the same time, it can realize the requirements of on-site pressure display, zero point and full range transfer.

The CKAS-8102PTEx pressure transmitter meets the explosion-proof requirements, is suitable for high-end occasions, and has stable performance.It is the best quality product in the world.This product is widely used in industrial process control, petroleum, chemical industry, metallurgy and other industries.

Features

1. Diffused silicon piezoresistive sensor

2. Strong and well-sealed aluminum alloy junction box, suitable for outdoor installation

3. Used for pressure measurement of gas, liquid and steam

4. Provide a wide range of pressure ranges for low pressure, medium pressure and high pressure

5. A variety of output signals are optional and can be customized according to customer requirements

6. Isolation explosion-proof

Anti-aging ·AIalgorithm·5Gtransmission

intelligent

Reliability PCB Authoritative Certification

Digitizing

Reliability PCB Authoritative Certification

miniaturization

Reliability PCB Authoritative Certification

productfeatures

One piece

The one-piece shell of the product has a long service life, excellent waterproof performance, comfortable touch feeling, and reasonable button layout.
One piece

The one-piece shell of the product has a long service life, excellent waterproof performance, comfortable touch feeling, and reasonable button layout.
first-class equipment

Using world-class production equipment, leading technology, advanced technology, stable and reliable products.

applicationindustry

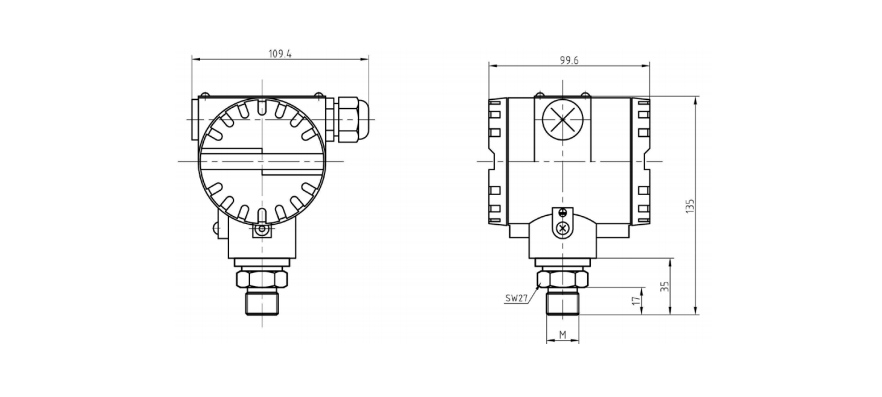

Dimensions

Dimensions

Electrical connections

Selection Guide

Selection instructions

This safety site needs to install a safety barrier;

A safety fence is required on Exia occasions;

The power supply of the transmitter should be 24VDC when selecting the live display function of M2 and M3, and the temperature conditions of the service environment should be taken into account;

When the product is used in thunderstorm areas, it is recommended to install thunder protection devices on the site and ensure that the product and power supply are reliably grounded. When the product is used in thunder areas, it is recommended to install thunder protection devices on the site and ensure that the product and power supply are reliably grounded;

For other special functional requirements, please contact our company for discussion

For other special function requirements, please contact us.
