Product Description

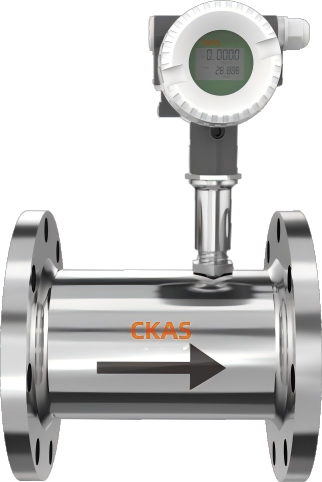

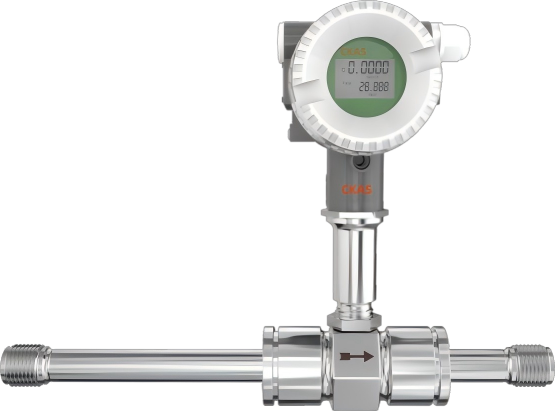

CKAS-FLYW990 series liquid turbine flowmeter is a precision flow measuring instrument composed of a turbine flow sensor and a display instrument. It belongs to the speed type flow meter. It is manufactured with foreign advanced technology and is one of the ideal flowmeters for liquid flow measurement. CKAS-FLYW990 series Liquid turbine flowmeters are widely used in petroleum, chemical industry, metallurgy, water supply, papermaking, environmental protection, food, medicine and other fields. They are suitable for flow measurement of liquids with no impurities, no strong corrosion and low viscosity. The quantitative controller is used together to realize functions such as over-quantity alarm or automatic quantitative control.
CKAS-FLYW990 series liquid turbine flowmeter adopts explosion-proof design standard as a whole, and explosion-proof or non-explosion-proof products are optional. The explosion-proof products have the explosion-proof certificate issued by the state, and the explosion-proof mark: Ex dCT6 Gb, are widely used in industrial sites that require explosion-proof
Features
2.1 High precision, generally up to +1%R, ±0.5%R, high-precision type up to +0.2%R (customization required);
2.2 Good repeatability, the short-term repeatability can reach 0.05%~0.2%. It is precisely because of the good repeatability, such as frequent calibration or online calibration, which can obtain extremely high accuracy, and is the preferred flowmeter in trade settlement
2.3 Using advanced ultra-low power consumption single-chip microcomputer technology, the whole machine has strong functions, low power consumption and superior performance;
2.4 Intelligent flow display with non-linear accuracy compensation function, multi-point correction of instrument coefficient, and the accuracy of the correction formula is better than +0.02%;
2.5 The full hard alloy (tungsten carbide) shielded cantilever beam structure bearing is used, which integrates the rotating bearing and the pressure bearing, which greatly improves the life of the bearing, not only ensures the accuracy, but also improves the wear resistance;
2.6 It is easy to maintain, has a self-rectifying structure, is small and light, and has a simple structure, and can be assembled and disassembled in a short time;
2.7 Strong anti-magnetic interference and vibration ability, reliable performance and long life;
2.8 On-site display type LCD screen display is clear and intuitive, low power consumption, 3.6V potassium
2.9 Wide measurement range, low flow rate limit
2.10 The pressure loss is small, the repeatability is good, and the precision is high. The impeller has anti-corrosion function.

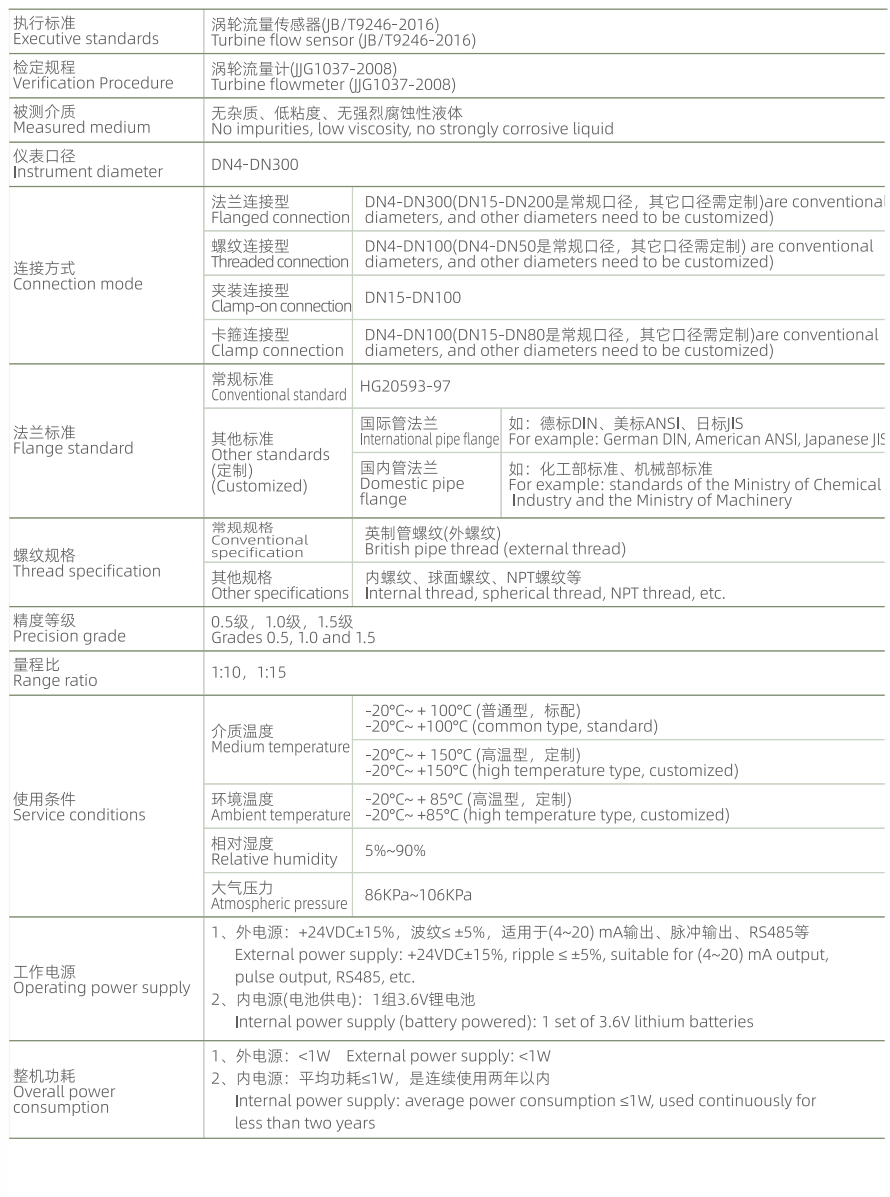

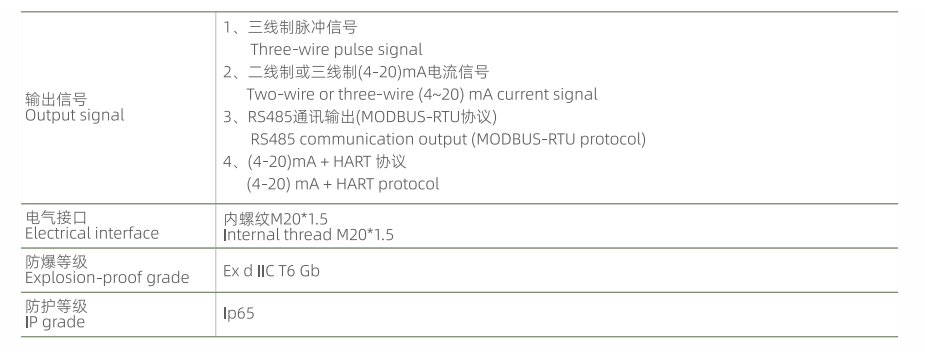

Technical Parameters
