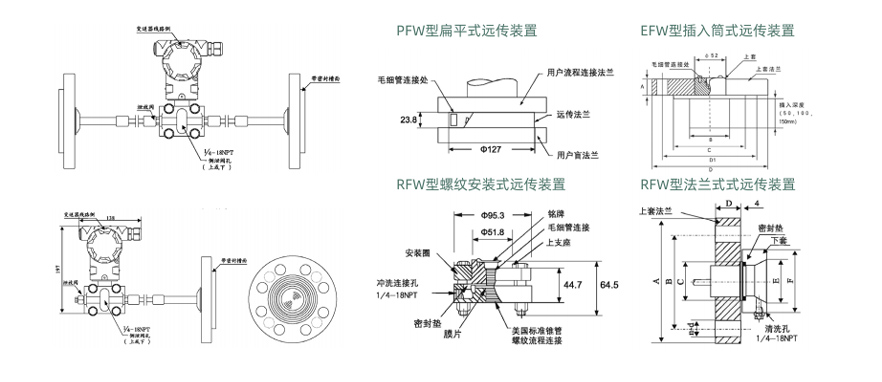

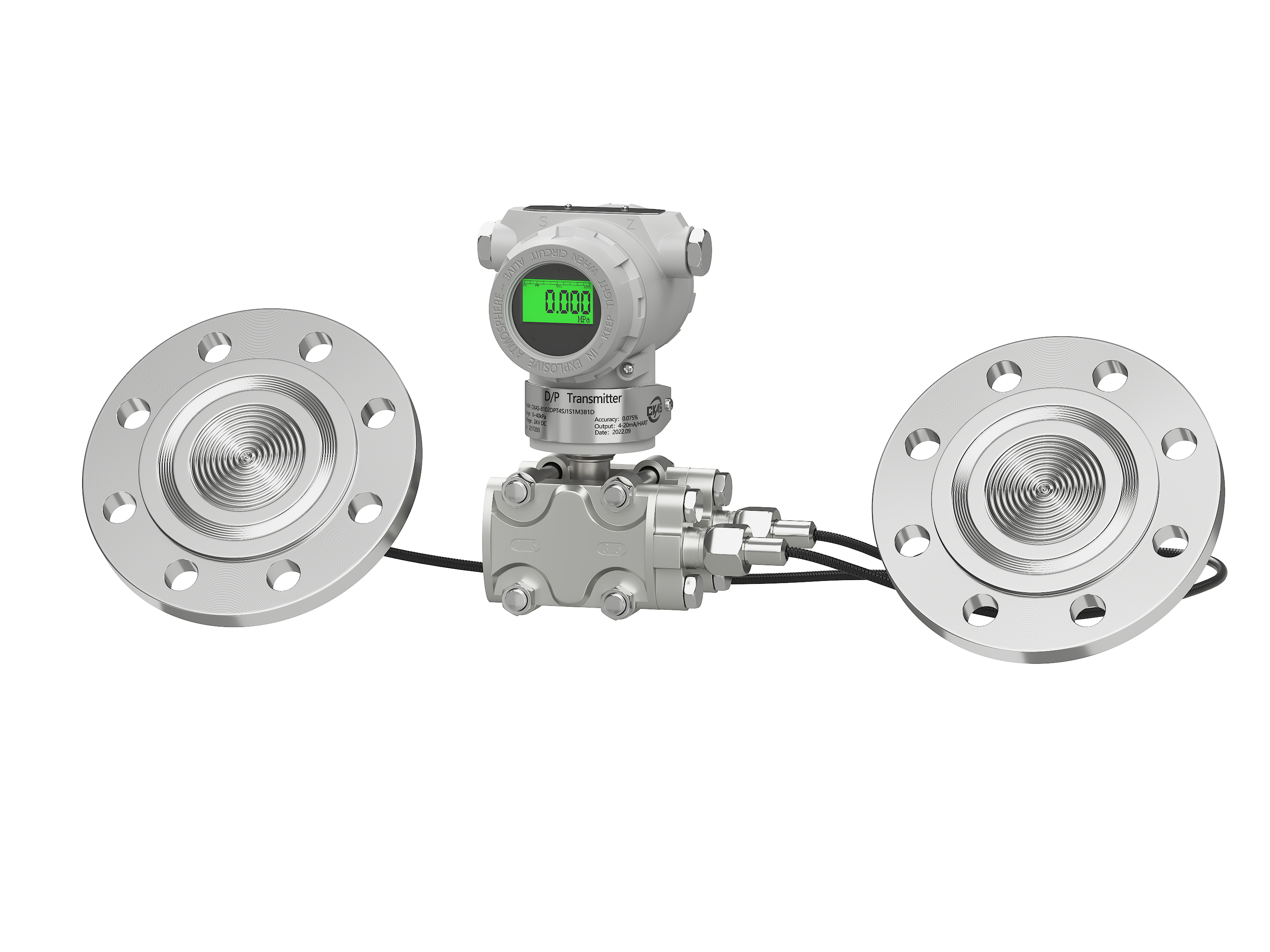

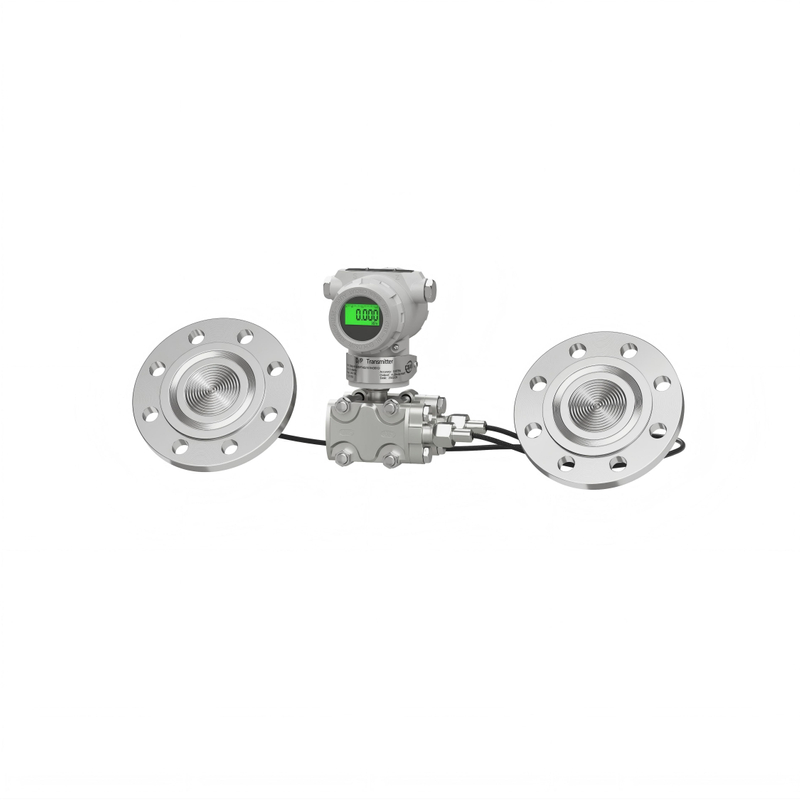

After the CKAS-8102DP/GP is equipped with a remote transmission device, it becomes a CKAS-8102DP/GP remote differential pressure/pressure transmitter.
CKAS-8102DP/GP remote differential pressure/pressure transmitter, can avoid the measured medium directly
It is a reliable measurement method for contact with the isolation diaphragm of the transmitter, which is suitable for the following situations:
1. When the measured medium has a corrosive effect on the transmitter joint and sensitive components
2. When it is necessary to isolate the high-temperature measured medium from the transmitter;
3. When there is solid suspension in the measured medium or high viscosity is easy to block the transmitter joint and pressure chamber;
4. When the measured medium is drawn out with a pressure tube and is easy to solidify or crystallize
5. It is necessary to replace the measured medium; when washing in the medium and not mixing:
6. Sanitary conditions must be maintained to prevent contamination.

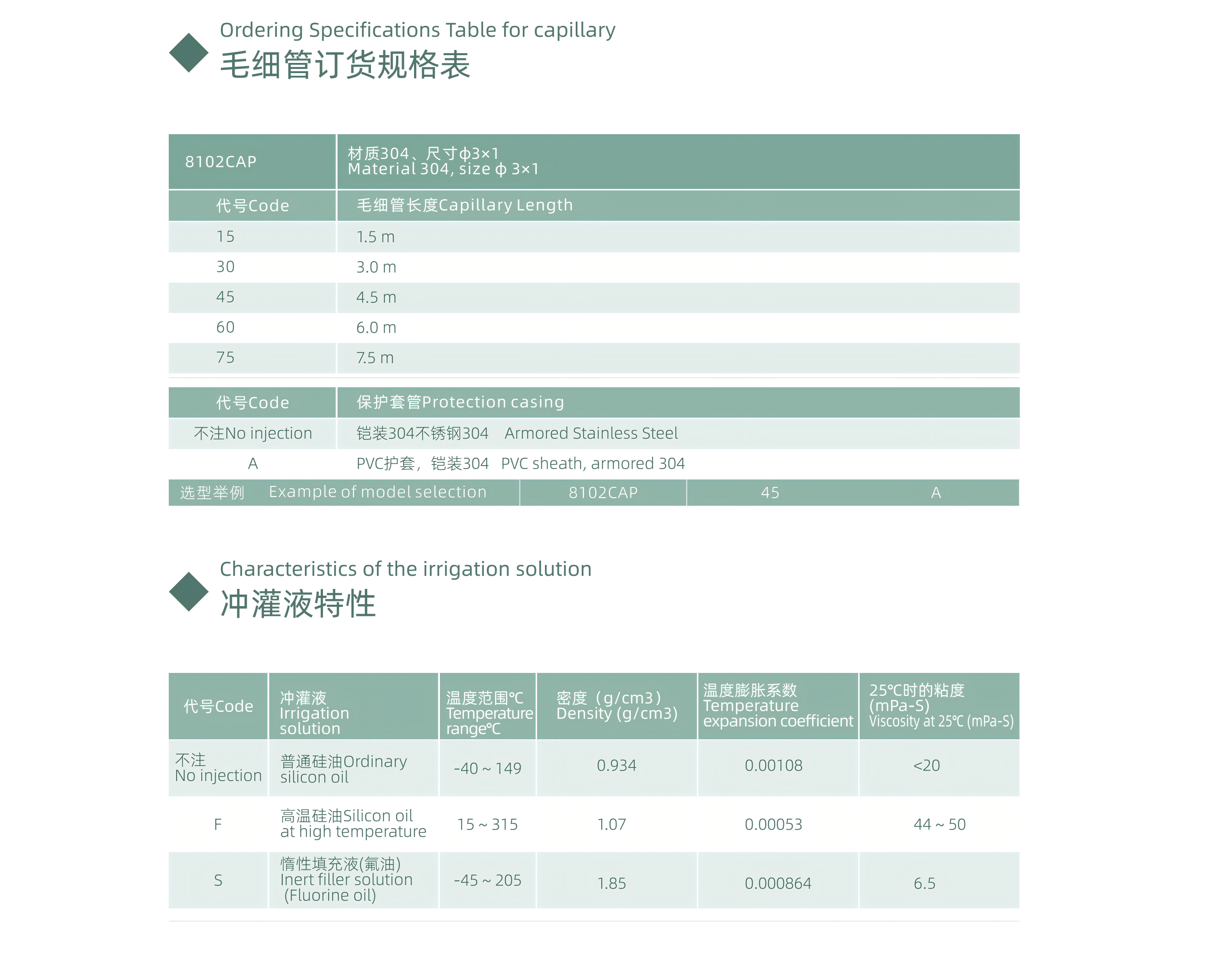

CKAS-8102DP/GP differential pressure/pressure transmitter with remote sealing device still has the performance characteristics of CKAS-8102DP/GP differential pressure/pressure transmitter.A variety of structural materials are provided, and the components of the remote transmission device are welded with high reliability.The low-volume design of the liquid-filled cavity reduces the impact of temperature. According to user requirements, the DC200 series silicone oil is filled with a service temperature of -40~+149°C; the use temperature of high-temperature silicone oil is 20~+315°C

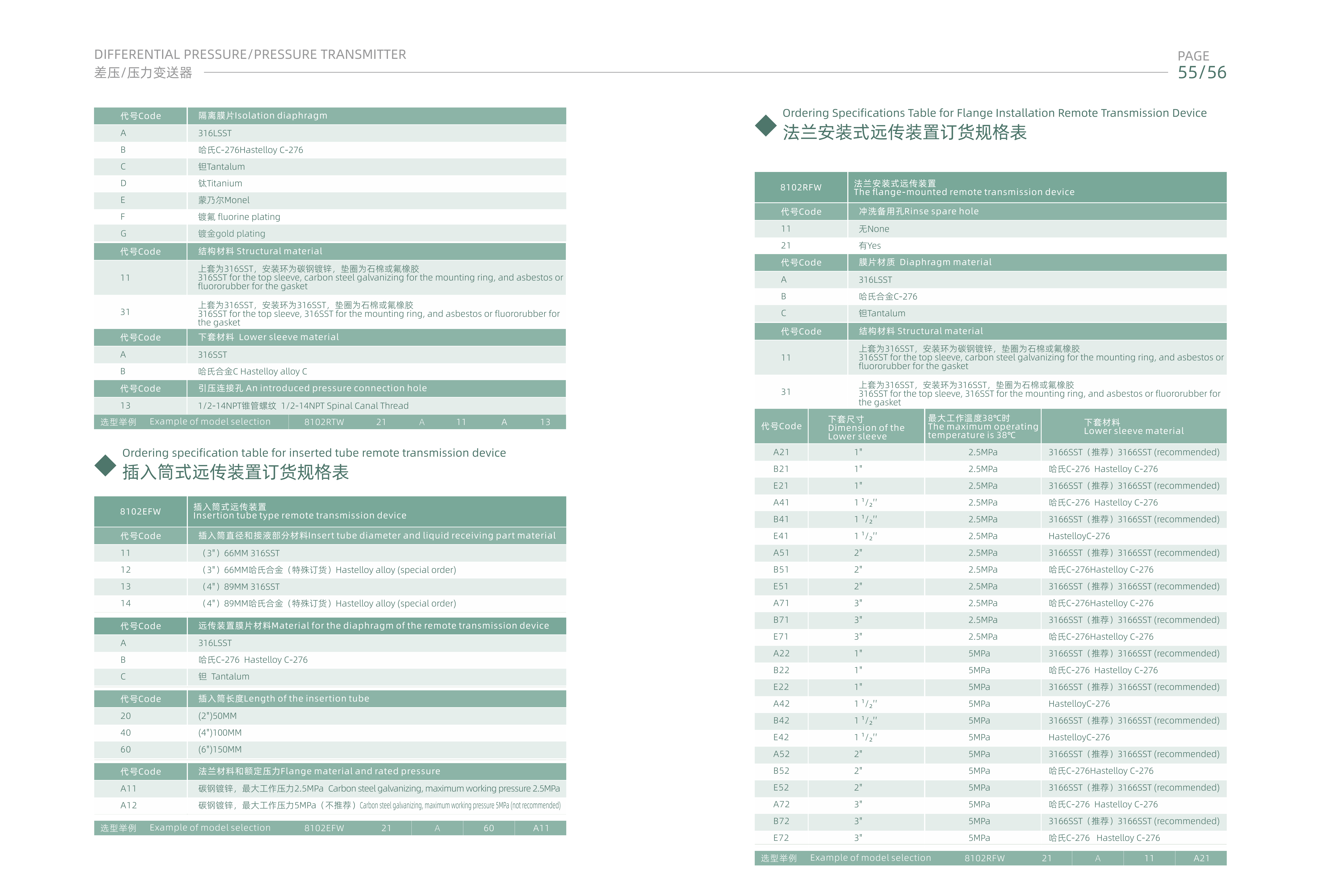

The upper limit of the working pressure of the remote transmission device is the rated value of the remote transmission device selected by the user; the working pressure is not lower than 3.5kPa (absolute pressure).For corrosive media, see the appendix for the selection of the material of the isolation diaphragm, which is only used as a reference for users when selecting models
Anti-aging ·AIalgorithm·5Gtransmission
Industrial core, accurate measurement is guaranteed
Anti-aging DURABLE
Artificial intelligence algorithm, rigorous logic and precise calculation.
AI algorithm AI ALGORITHM
5G transmission is one step faster.
5G transmission 5G TRANSMISSION
Smart Wireless IoT Instrument
Wireless IoT
WIRELESS IOT
intelligent
Reliability PCB Authoritative Certification
Digitizing
Reliability PCB Authoritative Certification
miniaturization
Reliability PCB Authoritative Certification
productfeatures
One piece
The one-piece shell of the product has a long service life, excellent waterproof performance, comfortable touch feeling, and reasonable button layout.
One piece
The one-piece shell of the product has a long service life, excellent waterproof performance, comfortable touch feeling, and reasonable button layout.
first-class equipment
Using world-class production equipment, leading technology, advanced technology, stable and reliable products.
applicationindustry
electricity
electricity
chemical industry
chemical industry
pharmaceutical
pharmaceutical
tank farm
tank farm
pipeline
pipeline
water conservancy
water conservancy
Note Note:
1. The temperature limit is lowered in vacuum
2. If the pressure exceeds 590kPa, the temperature can be used up to 315°C, otherwise it is lower than 315°C; 3. The selection code is written after the capillary code; for example: 3351DP4E22S2M1B37102RFW21A11A-30S
